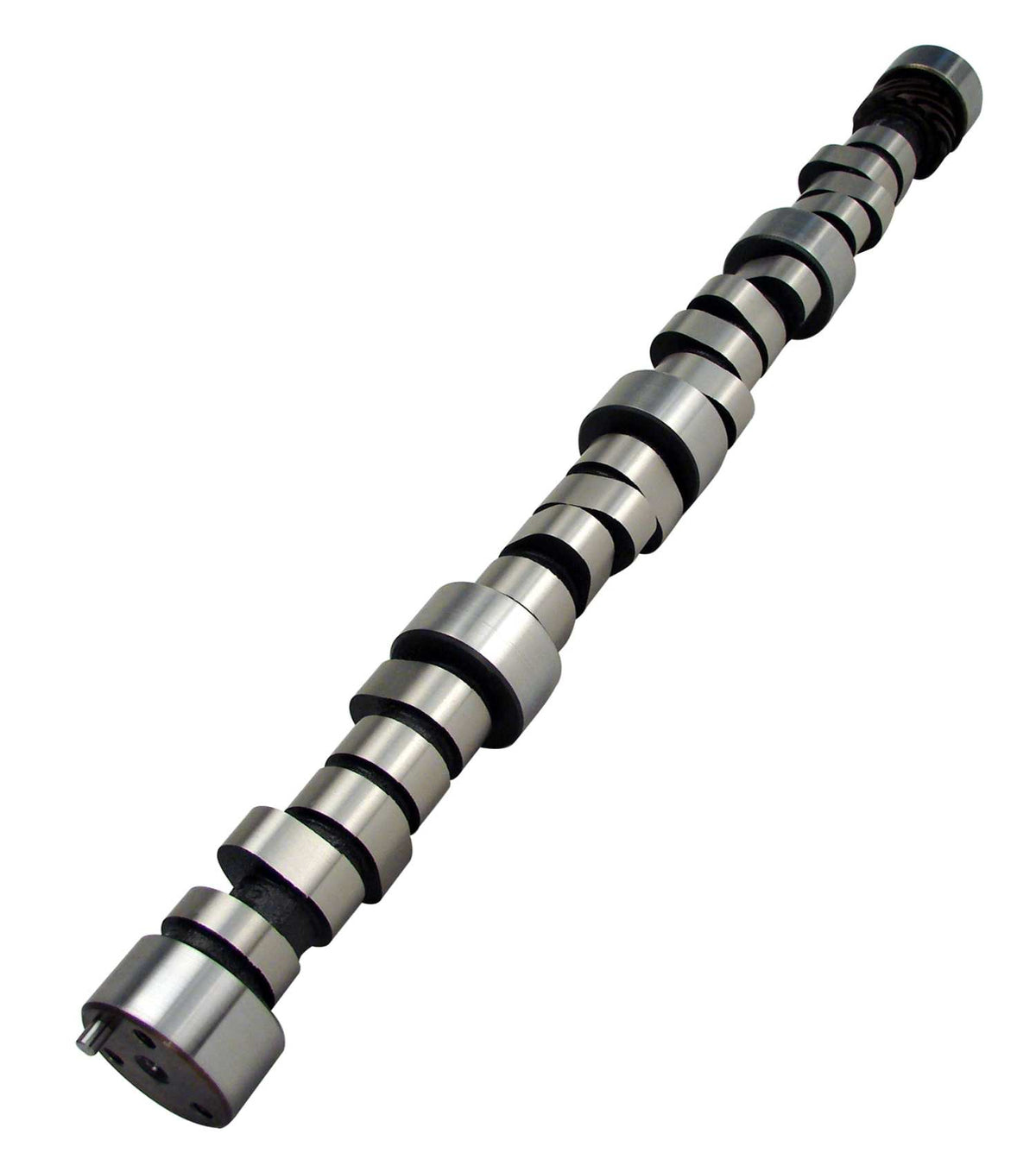

COMP Cams 12-413-8 Xtreme 4x4 220/224 Hydraulic Roller Cam for Chevrolet Small Block
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.
Good mid-range power, needs headers, 3.55-4.10 gears, 2000+ stall. Noticeable idle.
- For Retro-Fit (Link Bar) Hydraulic Roller Lifters Fits '58-'02 262-400 c.i.d. Chevy Small Blocks
- Good mid-range power - Needs headers, 3.55-4.10 Gears, 2000+ stall - Noticeable idle
- Xtreme 4X4â„¢ -Due to the allowances of lower engine speed, these designs are slightly more aggressive than the original Xtreme Energyâ„¢ Hydraulic Rollers. Great low and mid-range torque. They are one of our most aggressive hydraulic Roller lobes and run well in street, off-road and four-wheeling.
- WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.
Specifications
| Camshaft Series | Xtreme 4x4 |
| Usage | Street/Performance |
| Cam Type | Hydraulic Roller |
| Grind Number | X4270HR |
| Basic Operating RPM Range | 1,500-5,500 R3 |
| Intake Duration at .050 Inch Lift | 220 DD |
| Exhaust Duration at .050 inch Lift | 224 DD |
| Advertised Intake Duration | 270 DD |
| Advertised Exhaust Duration | 274 DD |
| Lobe Separation | 111 DD |
| Intake Valve Lift | 0.474 IN |
| Exhaust Valve Lift | 0.474 IN |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | No |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Engine Family | Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Cam and Lifter Kit Upgrade | CL12-413-8 |
| K-Kit Upgrade | K12-413-8 |
| Lifter Type | Hydraulic Roller |
| SK-Kit Upgrade | SK12-413-8 |
| Grind Number | X4270HR |
