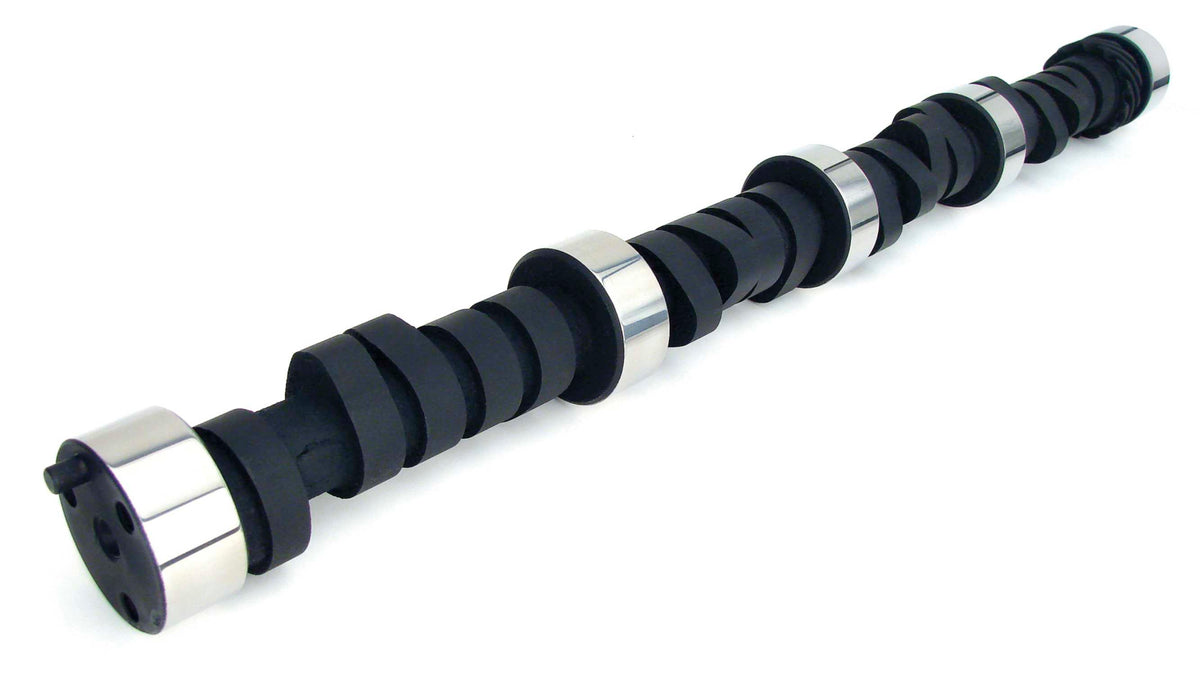

COMP Cams 12-560-4 Nitrous HP 224/236 Hydraulic Flat Cam for Chevrolet Small Block
This part is made for competition vehicles that are never driven on public roads. It has no CARB Executive Order, so it is not legal on emissions controlled vehicles used on the street, including in California.
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
Street machines with 125+ hp kit, 2200+ stall, gears, choppy idle.
- For Hydraulic Flat Tappet Lifters Fits '58-'02 262-400 c.i.d. Chevy Small Blocks
- Street machines with 125+ HP nitrous - 2200+ stall, Gears - Choppy idle
- Xtreme Energy Cams are designed to maximize torque, acceleration and throttle response while providing excellent high RPM horsepower. A faster intake valve opening increases engine vacuum and enhances throttle response. Special intake closing ramps close the valve sooner, providing more cylinder pressure and torque without resulting in excessive valve train noise. Faster ramps achieve maximum velocity sooner, increasing the area under the lift curve and providing maximum horsepower. Smoother exhaust designs allow for a more effective purge of spent gasses from the combustion chamber to further increase horsepower.
- For Carb or Tunable Fuel Injection3
Specifications
| Advertised Exhaust Duration | 286 deg |
| Lobe Separation | 113 deg |
| Intake Valve Lift | 0.477 IN |
| Exhaust Valve Lift | 0.49 IN |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | Yes |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Cast Iron |
| Engine Family | Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Cam and Lifter Kit Upgrade | CL12-560-4 |
| K-Kit Upgrade | K12-560-4 |
| Lifter Type | Hydraulic Flat Tappet |
| SK-Kit Upgrade | SK12-560-4 |
| Camshaft Series | Nitrous HP |
| Usage | Street/Strip |
| Cam Type | Hydraulic Flat Tappet |
| Grind Number | NX268H |
| Basic Operating RPM Range | 2,000-6,200 RPM |
| Intake Duration at .050 Inch Lift | 224 deg |
| Exhaust Duration at .050 inch Lift | 236 deg |
| Advertised Intake Duration | 268 deg |
| Grind Number | NX268H |
