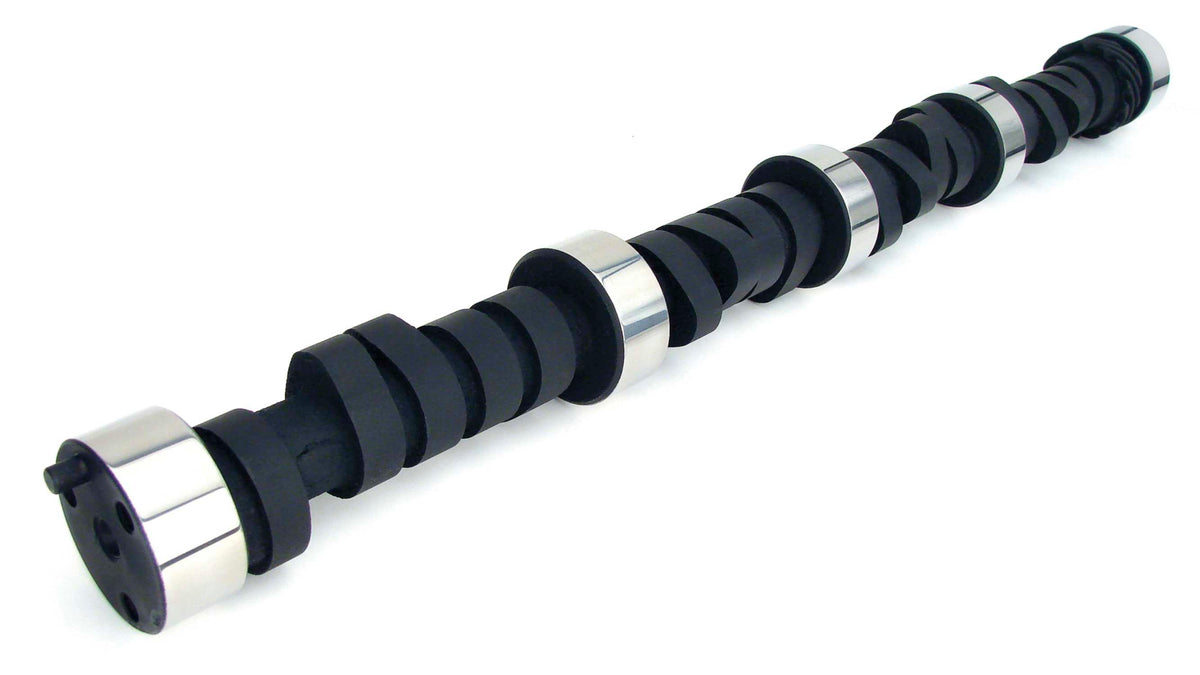

COMP Cams 12-564-4 Nitrous HP 230/244 Hydraulic Flat Cam for Chevrolet Small Block
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.
Street/strip applications, 125+ hp kit or medium blower, 2500+ stall. Rough idle.
- For Hydraulic Flat Tappet Lifters Fits '58-'02 262-400 c.i.d. Chevy Small Blocks
- Street/strip Applications with 125+ HP nitrous or medium blower - 2500+ stall - Rough idle
- Xtreme Energyâ„¢ Cams are designed to maximize torque, acceleration and throttle response while providing excellent high RPM horsepower. A faster intake valve opening increases engine vacuum and enhances throttle response. Special intake closing ramps close the valve sooner, providing more cylinder pressure and torque without resulting in excessive valve train noise. Faster ramps achieve maximum velocity sooner, increasing the area under the lift curve and providing maximum horsepower. Smoother exhaust designs allow for a more effective purge of spent gasses from the combustion chamber to further increase horsepower.
- For Carb or Tunable Fuel Injection3
Specifications
| Camshaft Series | Nitrous HP |
| Advertised Exhaust Duration | 292 DD |
| Lobe Separation | 113 DD |
| Intake Valve Lift | 0.487 IN |
| Exhaust Valve Lift | 0.501 IN |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | Yes |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Cast Iron |
| Engine Family | Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Cam and Lifter Kit Upgrade | CL12-564-4 |
| K-Kit Upgrade | K12-564-4 |
| Lifter Type | Hydraulic Flat Tappet |
| SK-Kit Upgrade | SK12-564-4 |
| Usage | Street/Strip |
| Cam Type | Hydraulic Flat Tappet |
| Grind Number | NX274H |
| Basic Operating RPM Range | 2,400-6,500 R3 |
| Intake Duration at .050 Inch Lift | 230 DD |
| Exhaust Duration at .050 inch Lift | 244 DD |
| Advertised Intake Duration | 274 DD |
| Grind Number | NX274H |
