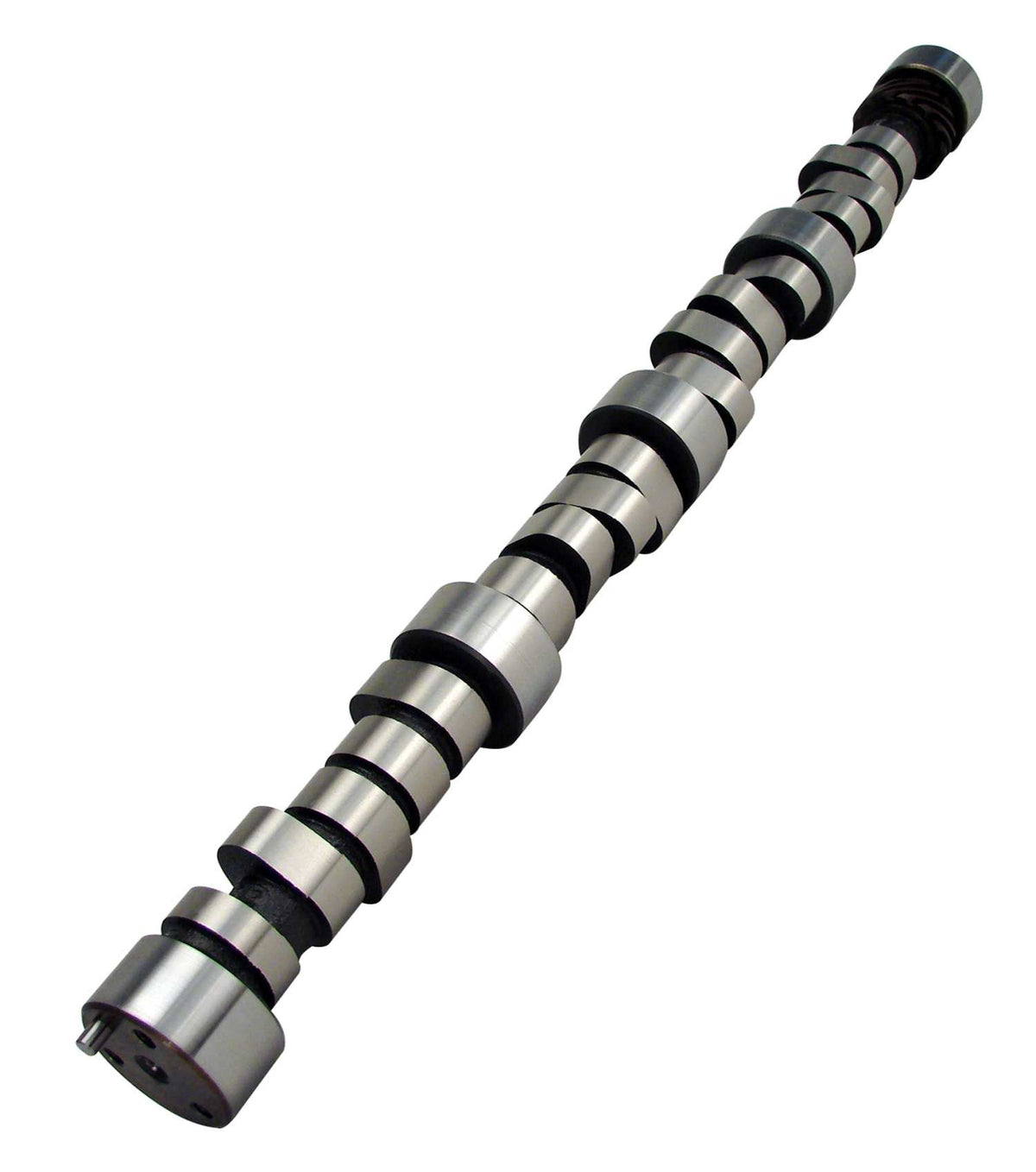

COMP Cams 12-700-8 Magnum 224/224 Solid Roller Cam for Chevrolet Small Block
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.
Most versatile, good vacuum, excellent throttle response, noticeable idle, works well with stock manifolds and 2000+ stall.
SBC - 1955-57 models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order. WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.
Specifications
| Camshaft Series | Magnum |
| Usage | Street/Strip |
| Exhaust Valve Lift | 0.525 IN |
| Grind Number | 268AR |
| Camshaft Gear Attachment | 3 |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Intake Valve Lift | 0.525 IN |
| Lobe Separation | 110 deg |
| Basic Operating RPM Range | 2,000-6,000 RPM |
| Exhaust Duration at .050 inch Lift | 224 deg |
| Intake Duration at .050 Inch Lift | 224 deg |
| Advertised Exhaust Duration | 268 deg |
| Advertised Intake Duration | 268 deg |
| Engine Family | Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Lifters Included | No |
| SK-Kit Upgrade | SK12-700-8 |
| Lifter Type | Solid Roller |
| Cam Type | Solid Roller |
| Valve Springs Required | Yes |
| Cam and Lifter Kit Upgrade | CL12-700-8 |
| K-Kit Upgrade | K12-700-8 |
| Assembly Lubricant Included | No |
⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
