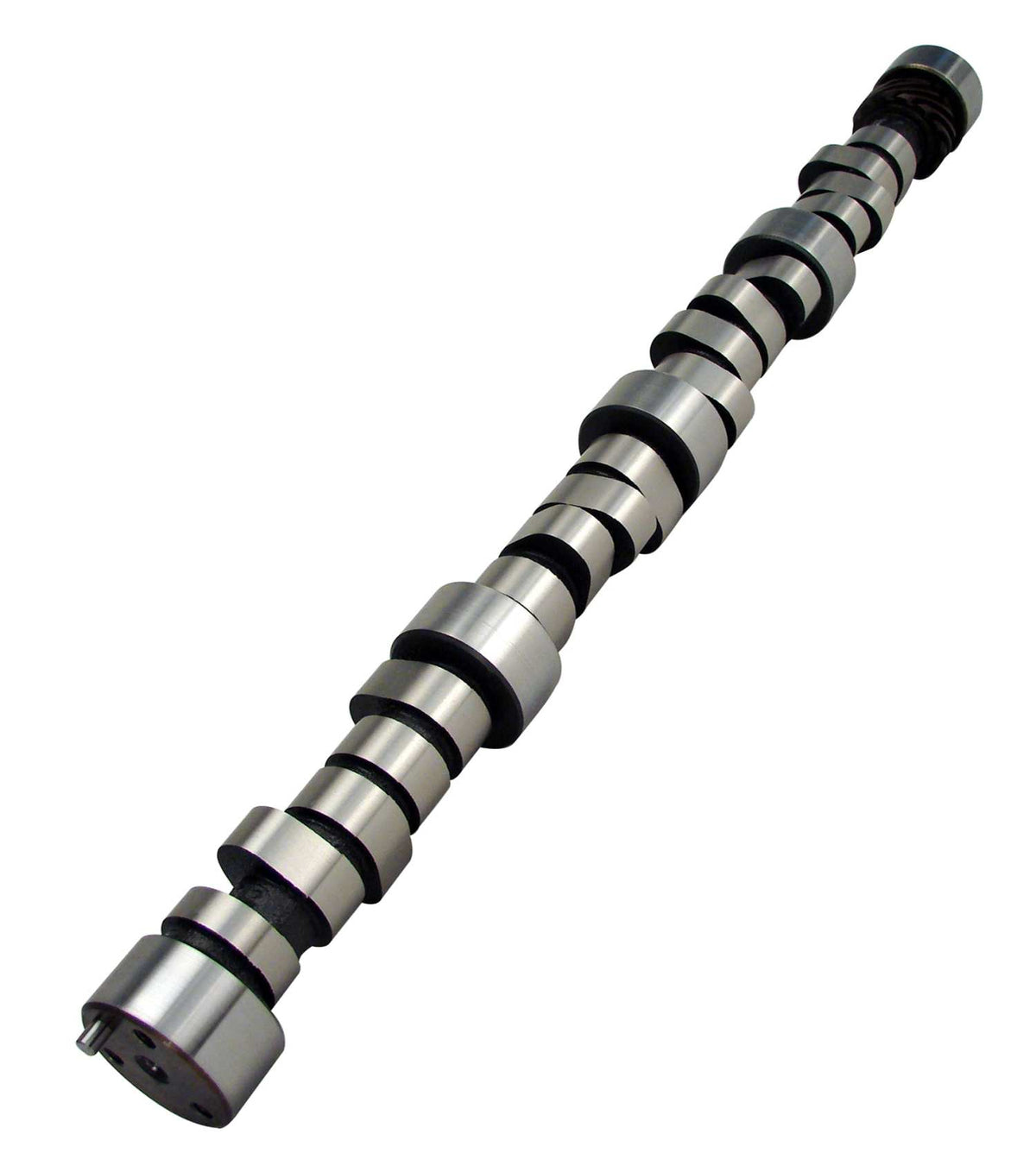

COMP Cams 12-702-8 Magnum 236/236 Solid Roller Cam for Chevrolet Small Block
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.
Street/strip performance. Choppy idle, use 2500+ stall and headers. 9.5:1 compression.
SBC - 1955-57 models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order. WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.
Specifications
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Engine Family | Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Cam and Lifter Kit Upgrade | CL12-702-8 |
| K-Kit Upgrade | K12-702-8 |
| Lifter Type | Solid Roller |
| SK-Kit Upgrade | SK12-702-8 |
| Camshaft Series | Magnum |
| Usage | Street/Strip |
| Cam Type | Solid Roller |
| Grind Number | 280AR |
| Basic Operating RPM Range | 2,500-6,500 R3 |
| Intake Duration at .050 Inch Lift | 236 DD |
| Exhaust Duration at .050 inch Lift | 236 DD |
| Advertised Intake Duration | 280 DD |
| Advertised Exhaust Duration | 280 DD |
| Lobe Separation | 110 DD |
| Intake Valve Lift | 0.55 IN |
| Exhaust Valve Lift | 0.55 IN |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | No |
| Grind Number | 280AR |
⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
