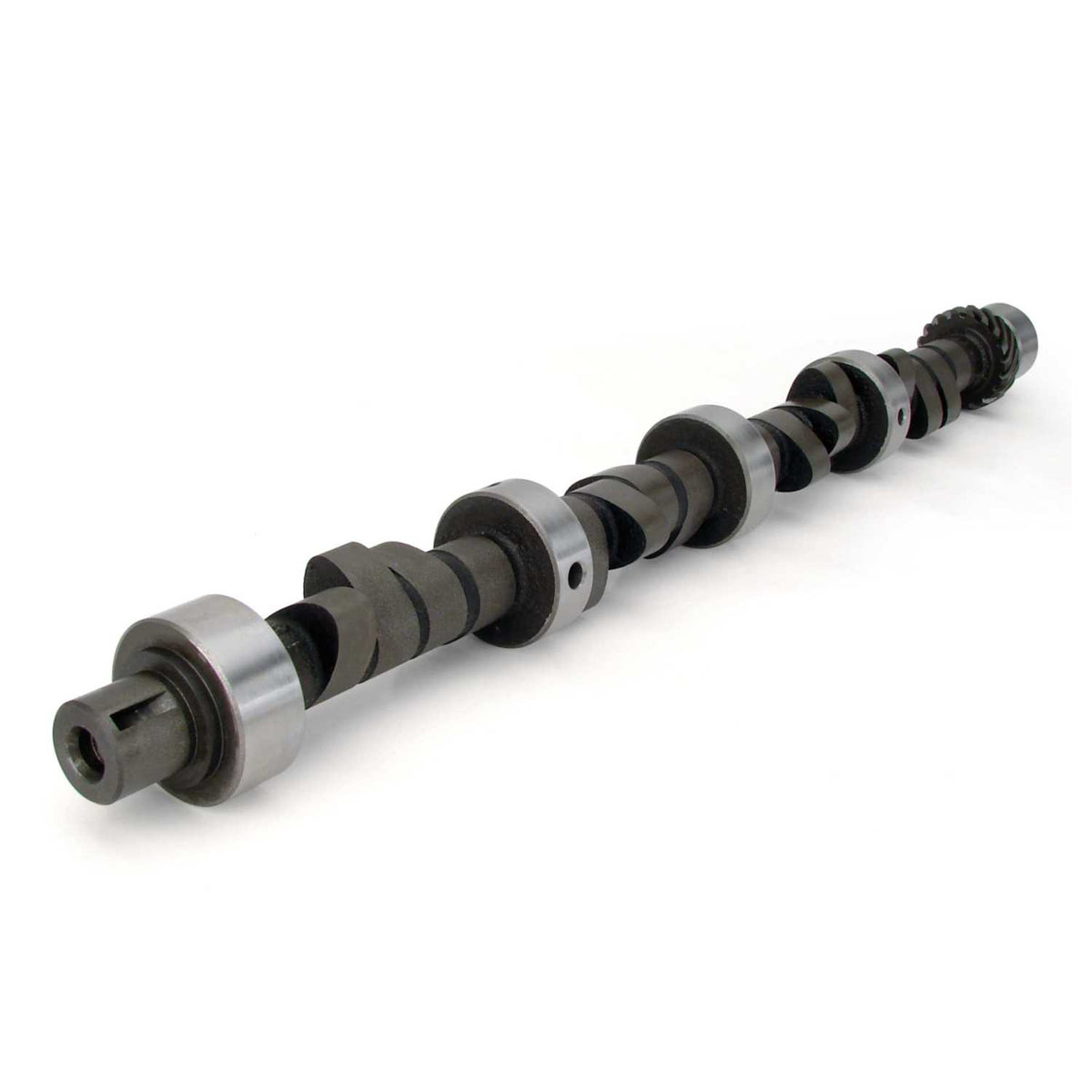

COMP Cams 20-232-4 Magnum 230/230 Hydraulic Flat Cam for Chrysler 273-360

A hydraulic flat tappet camshaft for Chrysler 340-360 cubic inch street engines, the COMP Cams 20-232-4 Magnum delivers 0.48 inch intake and exhaust valve lift with 230-degree duration at .050 inch lift on both sides. Operating from 2,500 to 6,000 RPM, this camshaft suits street/strip applications with dual exhaust, 3.55-3.91 gears, 9:1 compression, headers, and aftermarket intake with 2,500 stall converters. Assembly lubricant is included.

• Camshaft Series: Magnum
• Cam Type: Hydraulic Flat Tappet
• Lifter Type: Hydraulic Flat Tappet
• Usage: Street/Strip
• Grind Number: 280H
• Camshaft Material: Cast Iron
• Camshaft Gear Attachment: 1-Bolt
• Basic Operating RPM Range: 2,500-6,000 RPM
• Intake Duration at .050 Inch Lift: 230 deg
• Exhaust Duration at .050 inch Lift: 230 deg
• Advertised Intake Duration: 280 deg
• Advertised Exhaust Duration: 280 deg
• Intake Valve Lift: 0.48 IN
• Exhaust Valve Lift: 0.48 IN
• Lobe Separation: 110 deg
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
• Cam and Lifter Kit Upgrade: CL20-232-4
• K-Kit Upgrade: K20-232-4
• SK-Kit Upgrade: SK20-232-4
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
