COMP Cams

SKU 23-710-9

COMP Cams 23-710-9 Xtreme Energy 224/230 Hydraulic Roller Cam for Chrysler 383-440

Name: COMP Cams 23-710-9 Xtreme Energy 224/230 Hydraulic Roller Cam for Chrysler 383-440
Brand: COMP Cams
SKU: 23-710-9
Price: 622.95 USD
Availability: InStock

$622.95 USD

Out of Stock

This product is currently out of stock. It will be placed on backorder, and shipping can take 2 or more weeks to fulfill your order. and we will notify you as soon as it is back in stock.

Free US shipping on orders over $80

Warranty 12 Months

Is this converter legal for your car? CARB legality checker · instant

Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.

3.55-4.10 gear, 2000 stall in 440, 2200+ in 383, 9:1 compression, high performance street.

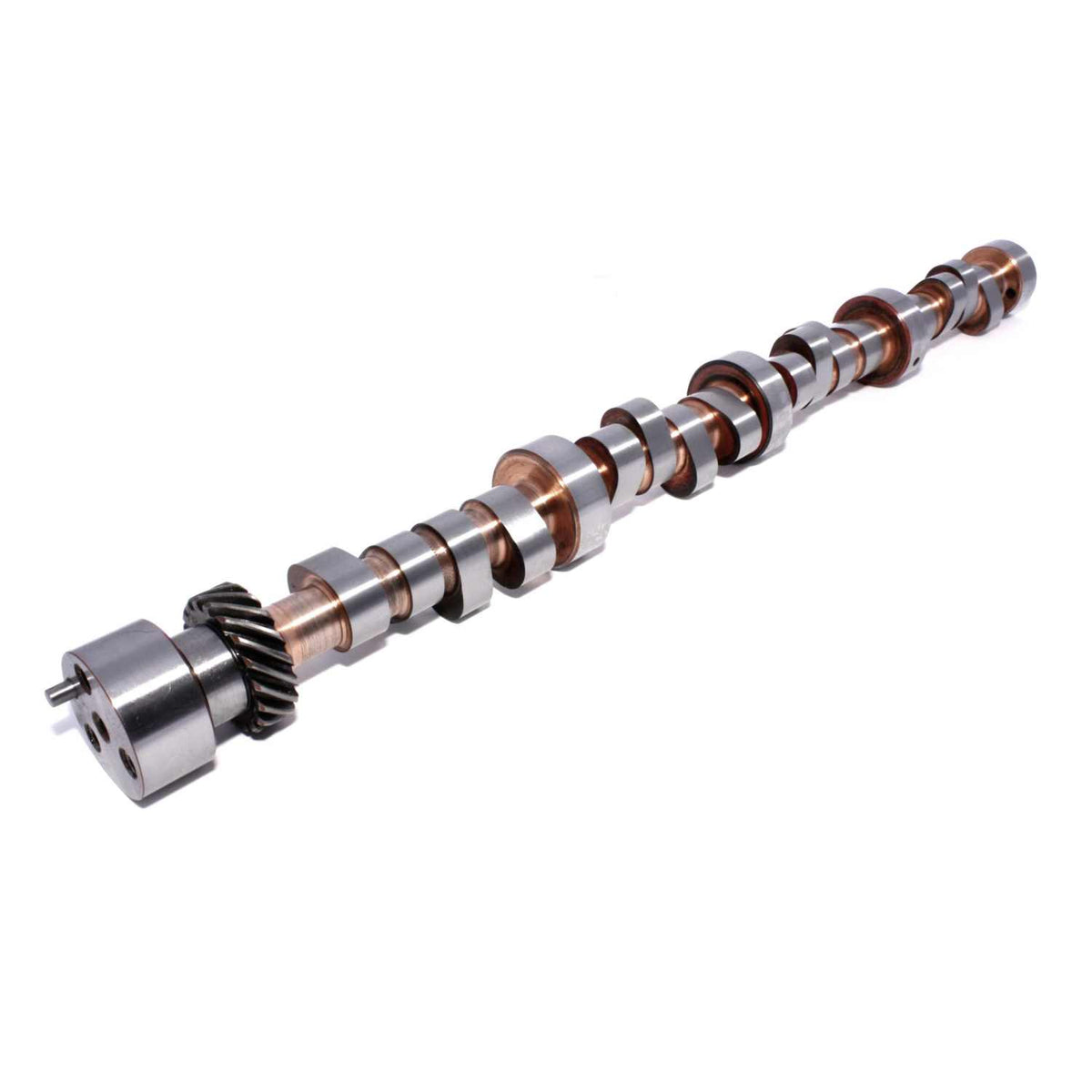

Xtreme Energy 224/230 Retro-Fit Hydraulic Roller Cam

Specifications

Camshaft Series	Xtreme Energy
Usage	Street/Performance
Cam Type	Hydraulic Roller
Grind Number	XR274HR-10
Basic Operating RPM Range	1,800-5,800 RPM
Intake Duration at .050 Inch Lift	224 deg
Exhaust Duration at .050 inch Lift	230 deg
Assembly Lubricant Included	No
Camshaft Gear Attachment	3-Bolt
Camshaft Material	Billet Steel
Engine Family	Chrysler 383-440 c.i. 8 Cylinder (1959-1980)
Lifter Type	Hydraulic Roller
Advertised Intake Duration	274 deg
Advertised Exhaust Duration	282 deg
Lobe Separation	110 deg
Intake Valve Lift	0.538 IN
Exhaust Valve Lift	0.534 IN
Lifters Included	No
Valve Springs Required	Yes
Grind Number	XR274HR-10

⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Warranty: 12 Months

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
