COMP Cams 26056-16 Engine Valve Spring Kit

Is this converter legal for your car? CARB legality checker · instant

Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.

COMP Cams

SKU 26056-16

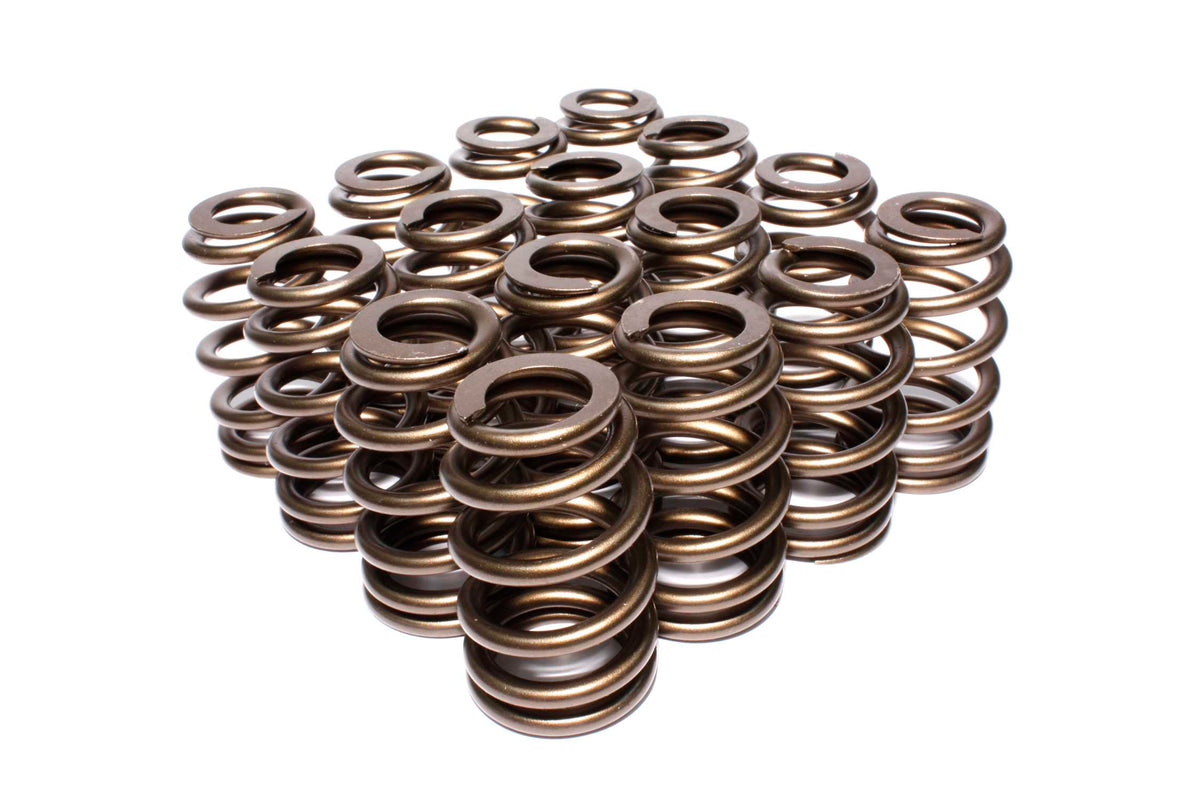

COMP Cams 26056-16 Race Sportsman 1.454" OD Beehive Springs, 1.800" Installed Height, 16 Springs

Name: COMP Cams 26056-16 Race Sportsman 1.454" OD Beehive Springs, 1.800" Installed Height, 16 Springs
Brand: COMP Cams
SKU: 26056-16
Price: 383.99 USD
Availability: InStock

$383.99 USD

In Stock - Fast Shipping

Free shipping over $80 To the USA

Warranty 12 Months

Is this converter legal for your car? CARB legality checker · instant

Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.

Beehive Valve Springs: Top 1.185" OD, .731" ID Bottom 1.454" OD, 1.000" ID

COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.

Part #	OD	ID	Seat Load	Open Load	Coil Bind	Rate (Lbs./In.)	Titanium Retainer	Steel Retainer	Cup Seat	Shims
26056	Top Bottom	1.1851.454	.7311.000	160 @ 1.800	420 @ 1.150	1.100	400	785	703, 705	4696, 4697, 4704	4757

Specifications

Compatible Retainer	785-16
Seat Height	1.8 IN
Compatible Shims	4757
Outer Top Spring Outside Diameter	1.185 IN
Outer Top Spring Inside Diameter	0.731 IN
Outer Bottom Spring Outside Diameter	1.454 IN
Outer Bottom Spring Inside Diameter	1 IN
Number of Springs	1
Damper	No
Compatible Spring Cup (O.D. Locator)	4704-16
Compatible .630" Guide Diameter Spring Seats	4697-16
Seat Pressure	160 PS
Compatible .570" Guide Diameter Spring Seats	4696-16
Coil Bind Height	1.1 IN
Valve Spring Series	Race Sportsman
Spring Rate	400
