COMP Cams 26095-16 Engine Valve Spring Kit

Is this converter legal for your car? CARB legality checker · instant

Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.

COMP Cams

SKU 26095-16

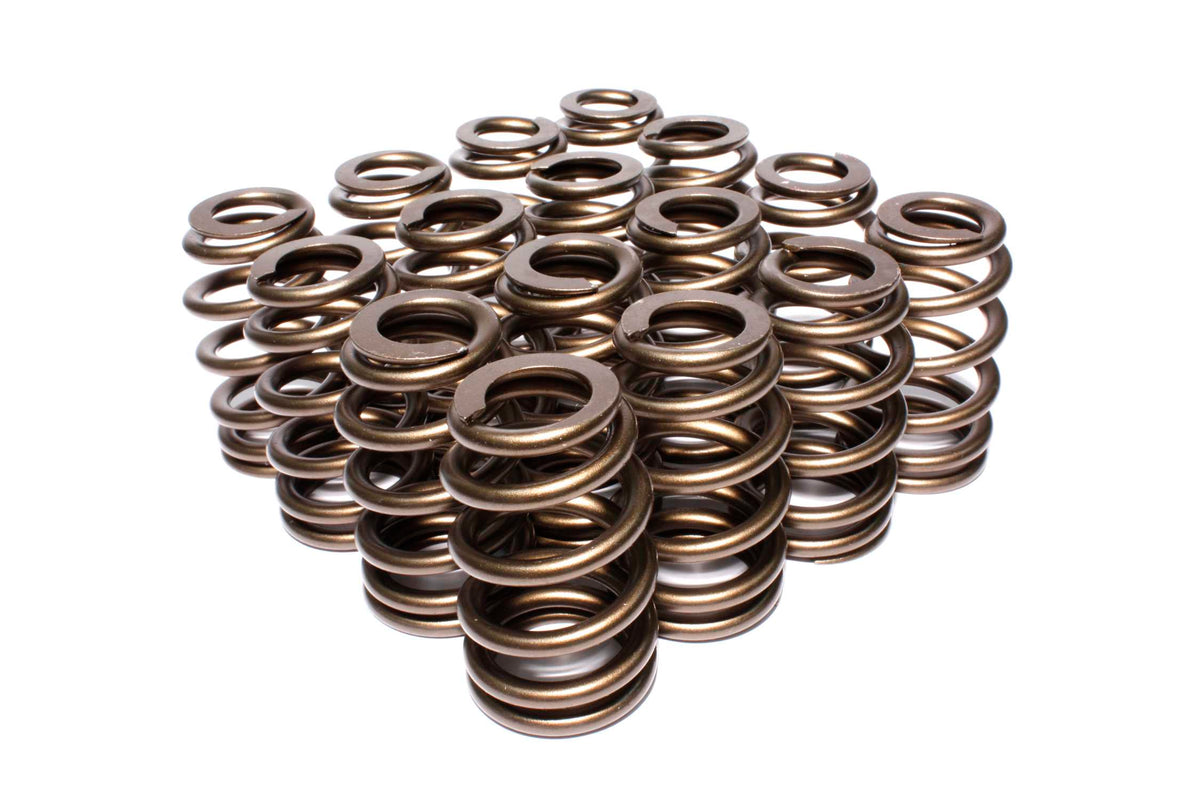

COMP Cams 26095-16 Race Street 1.590" OD Beehive Springs, 2.000" Installed Height, 16 Springs

Name: COMP Cams 26095-16 Race Street 1.590" OD Beehive Springs, 2.000" Installed Height, 16 Springs
Brand: COMP Cams
SKU: 26095-16
Price: 515.99 USD
Availability: InStock

$515.99 USD

Check Availability

Check availability, to reach.

Free shipping over $80 To the USA

Warranty 12 Months

Is this converter legal for your car? CARB legality checker · instant

Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.

Beehive Valve Springs: Top 1.185" OD, .731" ID Bottom 1.589" OD, 1.135" ID

With a .750" maximum lift, these Beehive Valve Springs are recommended for high lift Solid flat tappet and hydraulic Roller cams. They were designed for high performance street and track capabilities, and are used in Harley Davidson engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.

Part #	OD	ID	Seat Load	Open Load	Coil Bind	Rate (Lbs./In.)	Titanium Retainer	Steel Retainer	Cup Seat	Shims
26120	1.0951.445	.6501.000	155 @ 1.880	377 @ 1.280	1.230	370	794	795	4696, 4697, 4698	4754

Specifications

Compatible Shims	4757
Outer Bottom Spring Outside Diameter	1.59 IN
Spring Rate	300
Seat Pressure	150 PS
Seat Height	1.925 IN
Outer Top Spring Outside Diameter	1.186 IN
Outer Top Spring Inside Diameter	0.721 IN
Outer Bottom Spring Inside Diameter	1.125 IN
Coil Bind Height	1.13 IN
Number of Springs	1
Damper	No
Compatible Spring Cup (O.D. Locator)	4702-16
Compatible Retainer	785-16
Compatible .570" Guide Diameter Spring Seats	4711-16
Valve Spring Series	Race/Street

⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Warranty: 12 Months

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
