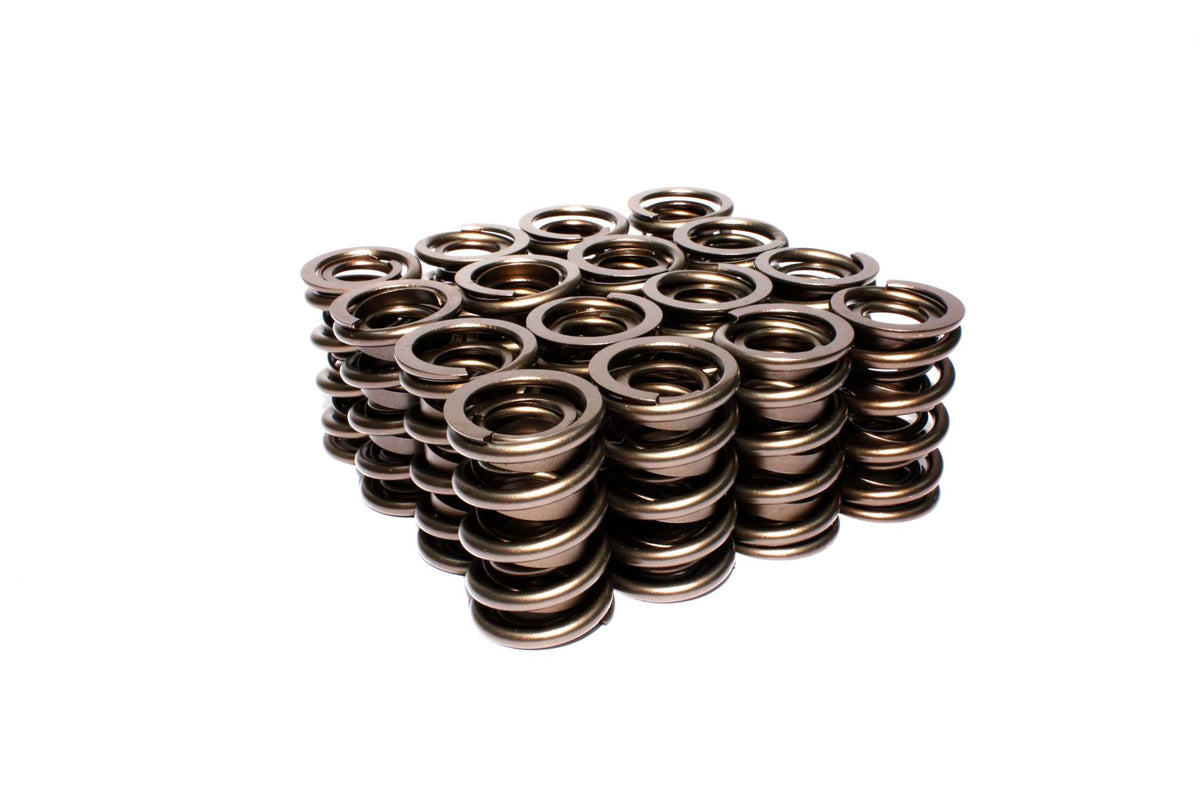

COMP Cams 26097-16 DUAL SPRING W/ DAMPER, 1.549 OD, 2.000 IH, .800 LIFT, 500 LBS/IN
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.
Designed for endurance-race-oriented solid roller cams, 26097 fits applications near a 2.000" installed height and a spring pocket of 1.549". It has a 500 lbs/in rate and over 600 lbs open load for increased RPM and improved dynamics.
COMP Cams' 26097 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire processing, they redefine reliability and consistency in the performance automotive aftermarket. This spring utilizes a progressive pitch coiling process that greatly improves durability and ensures safe spring life beyond traditional extreme-duty applications. The 26097 is purposed for endurance solid roller applications, with up to .800” lift at an installed height of 2.000”. They fit cylinder heads with at least a 1.549" spring pocket. Boasting an open load of over 600 pounds, these valve springs are designed for endurance applications and optimized with newer lobe profiles in mind to achieve higher RPM and higher lift. It is similar to the new 26953 but includes more seat load and installed height for applications where the 26953 is too short. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the track with COMP Cams valve springs.
Specifications
| Open Height (in) | 1.200 IN |
| Load at Open Height (lbs) | 597 PS |
| Recommended Max Lift (in) | .800 IN |
| Number of Springs | 16 |
| Spring Rate(lbs/in) | 502 |
| Load at Installed Height (lbs) | 195 PS |
| Installed Height | 2.000 IN |
| Outer Spring Outside Diameter | 1.551 IN |
| Outer Spring Inside Diameter | 1.117 IN |
| Inner Spring Inside Diameter | 0.721 IN |
| Maximum Coil Bind Height (in) | 1.135 IN |
| Damper | Yes |
| Compatible Spring Cup (O.D. Locator) | 4700 Spring Seats for OD Locator |
| Compatible Shims | 4757 Spring Shims |
| Compatible Retainer | 732 Standard Titanium Retainers for 10° Locks and All Valves |
| Compatible .630" Guide Diameter Spring Seats | 4782 Spring Seats for .630 Guide |
| Compatible .570" Guide Diameter Spring Seats | 4781 Spring Seats for .570 Guide |
