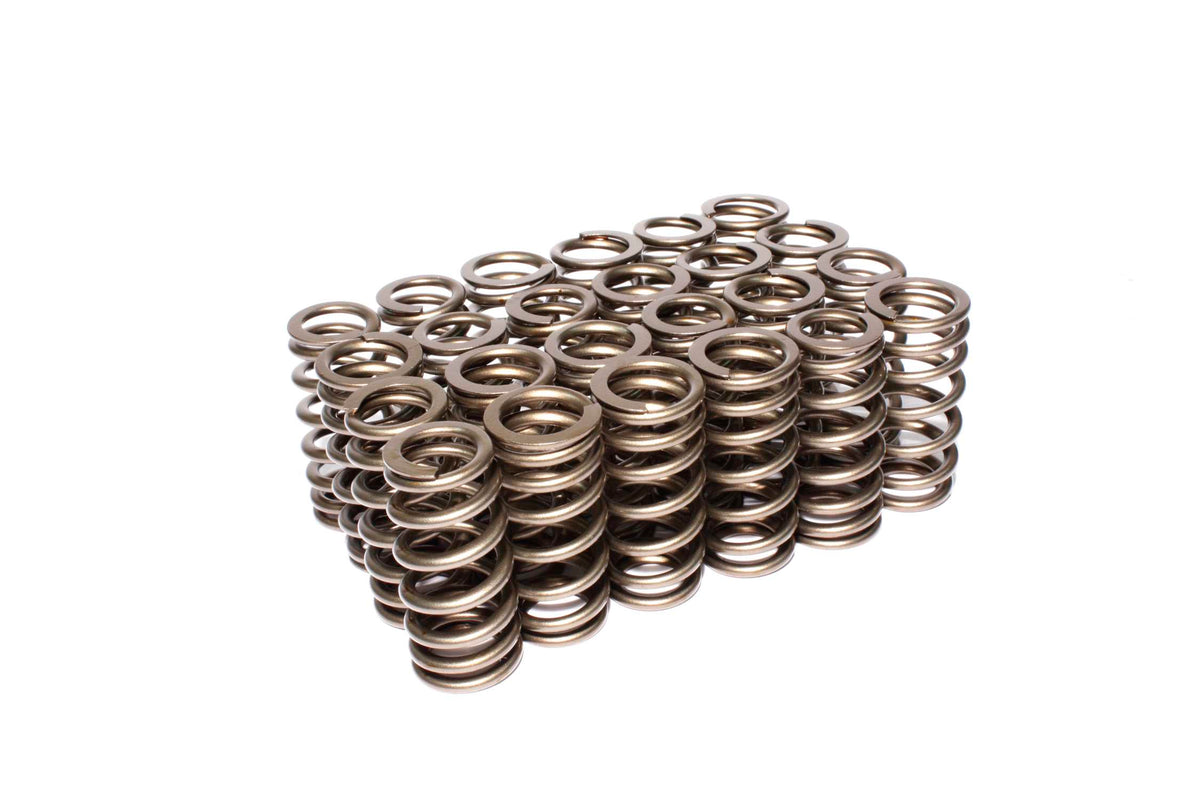

COMP Cams 26113-24 Performance Street 1.061" OD Beehive Spring, 1.570" Installed Height, 24 Springs

Deliver increased valve train stability and lighter valve train performance, the Beehive Valve Springs from COMP Cams (part 26113-24) are engineered for Ford 4.6L and 5.4L modular 2 and 3 valve engines. Featuring a unique beehive shape with oval/multi-arc wire construction, these springs efficiently handle valve train stress while eliminating damaging harmonics and supporting higher RPM capability with improved durability. The oval/multi-arc wire shape places maximum material at the point of highest stress for better load distribution and heat dissipation. With a maximum lift rating of.550 inches and specifications of.959-inch top outer diameter by.636-inch inner diameter and 1.061-inch bottom outer diameter by.738-inch inner diameter, the springs deliver consistent valve control with reduced weight.

• Type: Beehive Valve Spring
• Application: Ford 4.6L and 5.4L Modular Engines
• Engine Configuration: 2 and 3 Valve
• Top Outer Diameter:.959"
• Top Inner Diameter:.636"
• Bottom Outer Diameter: 1.061"
• Bottom Inner Diameter:.738"
• Maximum Lift:.550"
• Seat Load: 93 @ 1.570
• Open Load: 198 @ 1.020
• Coil Bind:.952
• Coil Bind Height: 1.01 IN
• Seat Height: 1.64 IN
• Seat Pressure: 79.91 PSI
• Rate: 191 Lbs./In.
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• 26113: Top Bottom
