COMP Cams 26925CS-KIT GM LS Dual Valve Spring Kit w/ Chromemoly Steel Retainers, .660" Max Lift

Name: COMP Cams 26925CS-KIT GM LS Dual Valve Spring Kit w/ Chromemoly Steel Retainers, .660" Max Lift
Brand: COMP Cams
SKU: 26925CS-KIT
Price: 600.95 USD
Availability: InStock

$600.95 USD

In Stock · Fast Shipping

Free US shipping on orders over $80

Warranty 12 Months

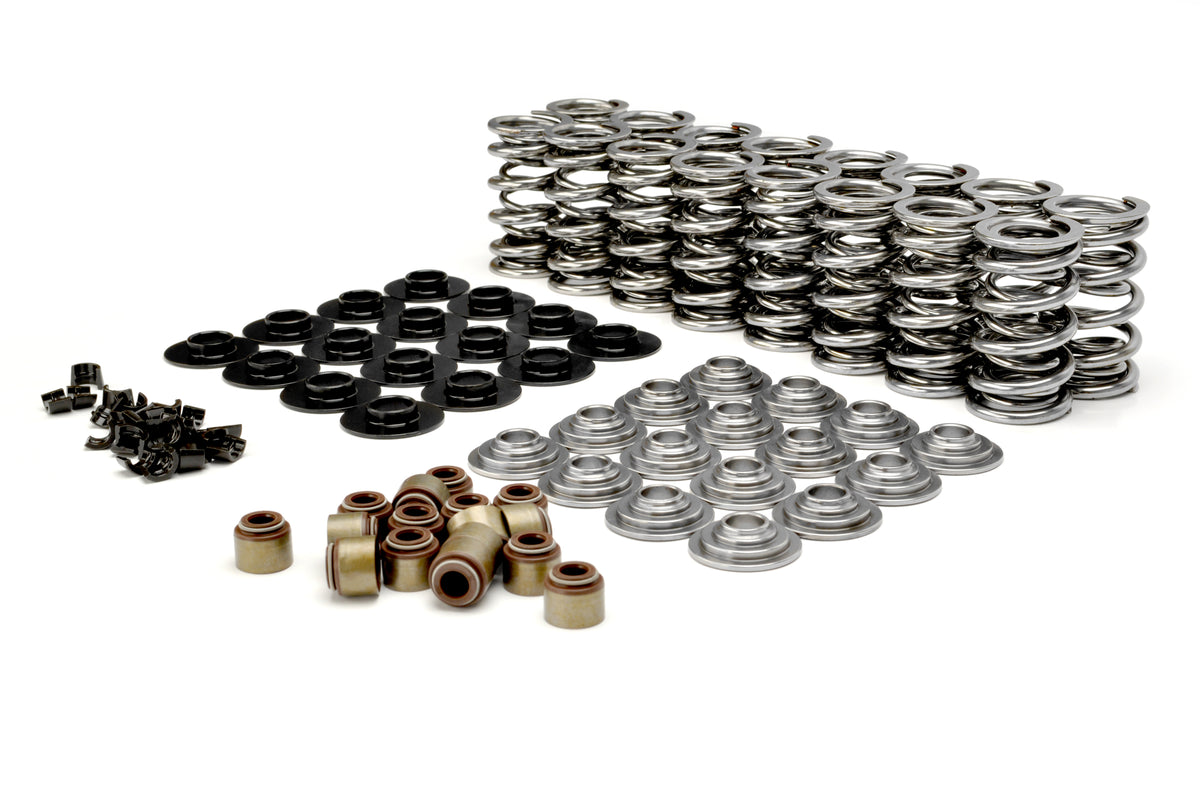

A dual valve spring kit with chromemoly retainers, the COMP Cams 26925CS-KIT provides matched quality springs for LS engines with aggressive cams supporting up to.660-inch valve lift. The kit includes dual springs, 7-degree locks, viton seals, hardened seats, and chromemoly steel retainers in a complete assembly. With an installed height of 1.810 inches, seat pressure of 141 psi, open load of 405 psi, and spring rate of 400 PPI, the kit is designed for hydraulic and some solid roller camshaft applications.

Spring Style: Dual
Number of Springs: 2
Max Lift:.660" / 0.660 IN
Outer Spring Outside Diameter: 1.320 IN
Outer Spring Inside Diameter: 0.958 IN
Inner Spring Inside Diameter: 0.680 IN
Coil Bind Height: 1.070 IN
Installed Height: 1.810 IN
Seat Pressure: 141 psi
Open Load: 405 psi
Spring Rate: 400 PPI
Spring Seat Type: I.D. Locator
Retainer Material: Chromemoly Steel
Includes Seats: Yes (4695-16)
Includes Retainers: Yes
Includes Shims: No
Damper: No
Includes Shims?: No
Includes Seats?: Yes
Includes Retainers?: Yes

Weight: 3.07 lb

Country of Origin: United States

California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
