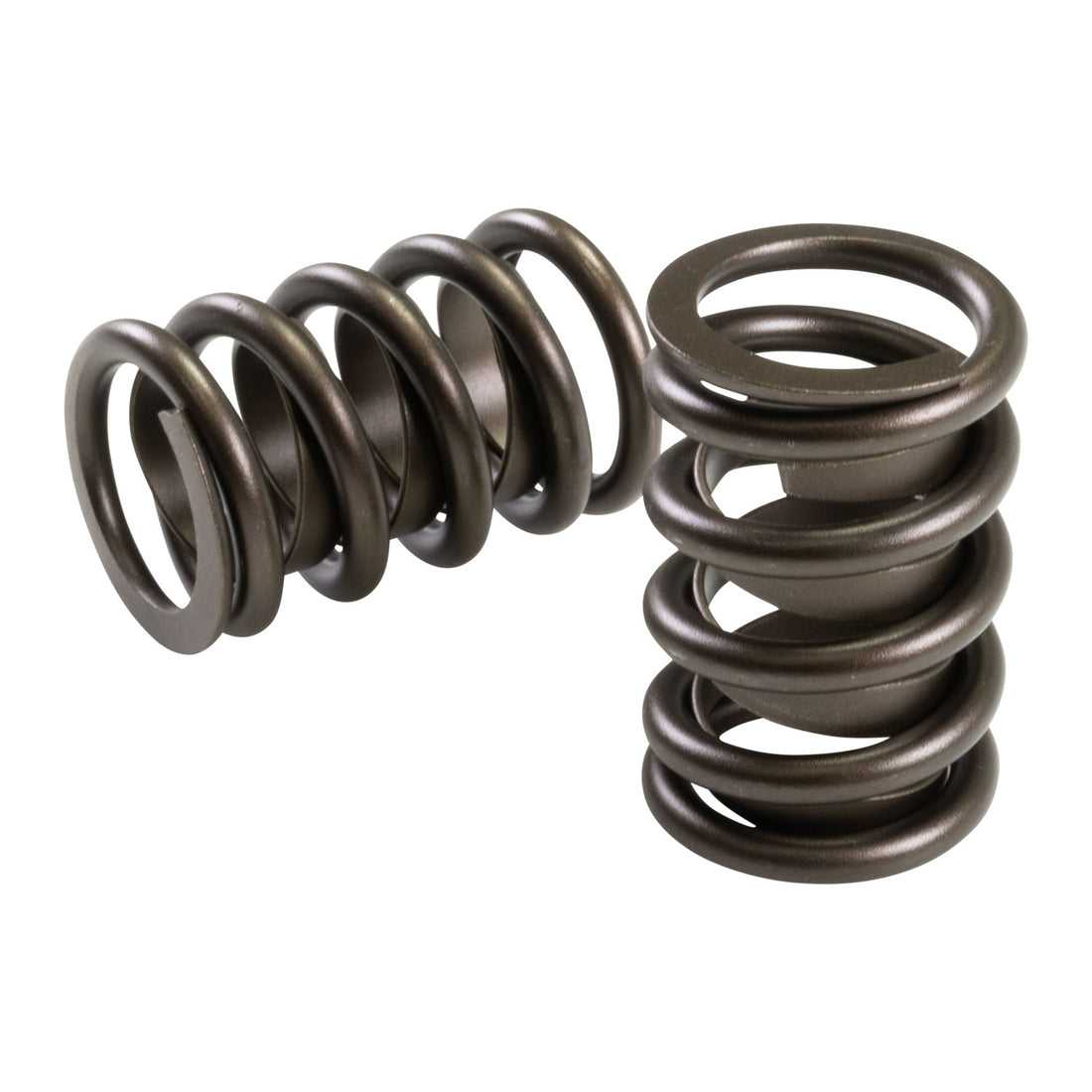

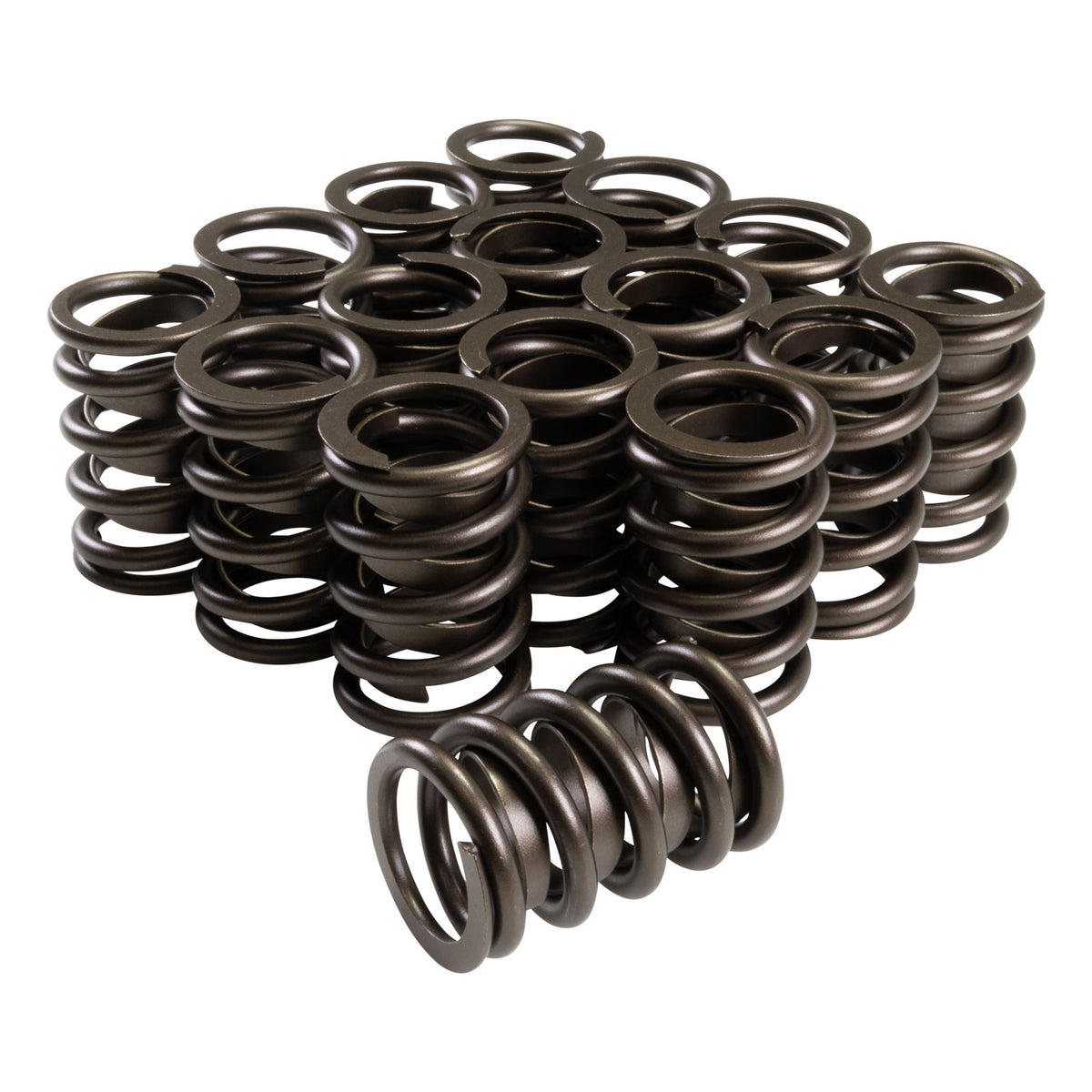

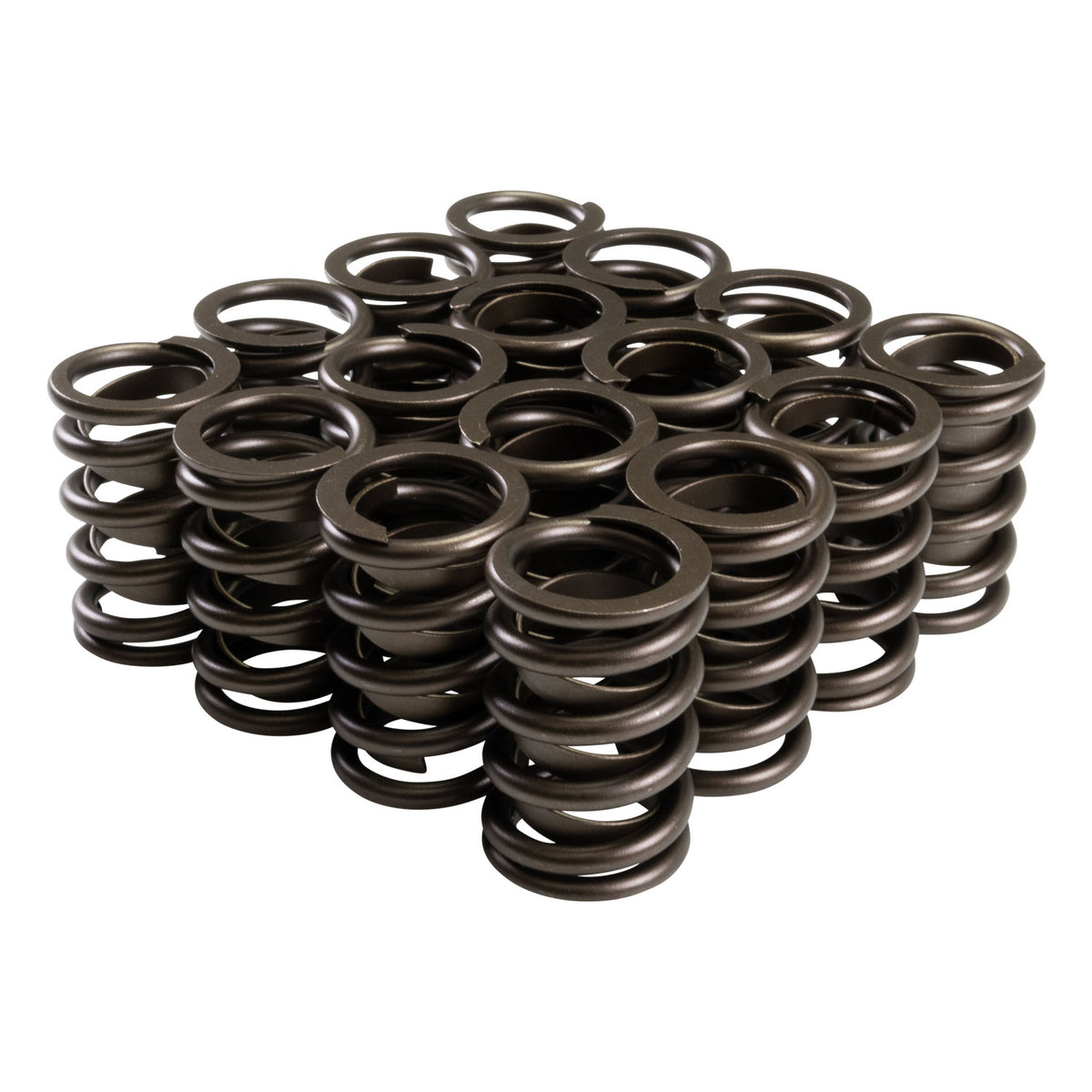

COMP Cams 26942-16 SINGLE SPRING W/ DAMPER, 1.440 OD, 1.750 IH, .600 LIFT, 350 LBS/IN
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.
Designed for both flat tappet and hydraulic roller cams, 26942 fits applications near a 1.750" installed height and a spring pocket of 1.440". A 350 lbs/in rate and 338 lbs of open load are suitable for many applications.
COMP Cams' new 26942 single valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire, they redefine reliability and consistency in the performance automotive aftermarket.The 26942 stands out as the optimal choice for a wide range of applications, accommodating hydraulic flat tappest and street hydraulic roller cams up to .600” lift, with an installed height of 1.750”. They seamlessly fit numerous spring pockets with a 1.440" outer diameter, offering versatility across many applications. Boasting an open load of over 330 pounds, these valve springs are geared toward early hydraulic roller street or flat tappet applications, but a 350 lbs/in rate means it's also suitable for many solid flat tappet applications. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road with COMP Cams valve springs.
Specifications
| Recommended Max Lift (in) | 0.6 IN |
| Inner Spring Inside Diameter | 0.94 IN |
| Outer Spring Inside Diameter | 1.03 IN |
| Coil Bind Height | 1.1 IN |
| Spring Open Height | 1.2 IN |
| Outer Spring Outside Diameter | 1.44 IN |
| Installed Height | 1.75 IN |
| Seat Height | 1.9750 IN |
| Installed Pressure | 128 PS |
| Spring Load | 128 LB |
| Valve Spring Quantity | 16 |
| Open Pressure | 321 PS |
| Spring Rate | 350 PPI |
| Compatible Seats | 4704 Spring Seats for OD Locator |
| Compatible Shims | 4754 Spring Shims |
| Compatible Retainer | 708 Steel Retainers for 7° Locks and 3/8 Valves |
| Related Products | 708 Steel Retainers for 7° Locks and 3/8 Valves 768 Steel Retainers for 7° Locks and 11/32 Valves 709 Steel Retainers for 10° Locks and All Valves 1739 Tool Steel Retainers for 7° Locks and 3/8 Valves 1738 Tool Steel Retainers for 7° Locks and 11/32 Valves 716 Lightweight Titanium Retainers for 10° Locks and All Valves 4704 Spring Seats for OD Locator 4754 Spring Shims |
| Valve Spring Finish | Raw |
| Spring Type | Single Spring |
| Damper Spring Included | Yes |
