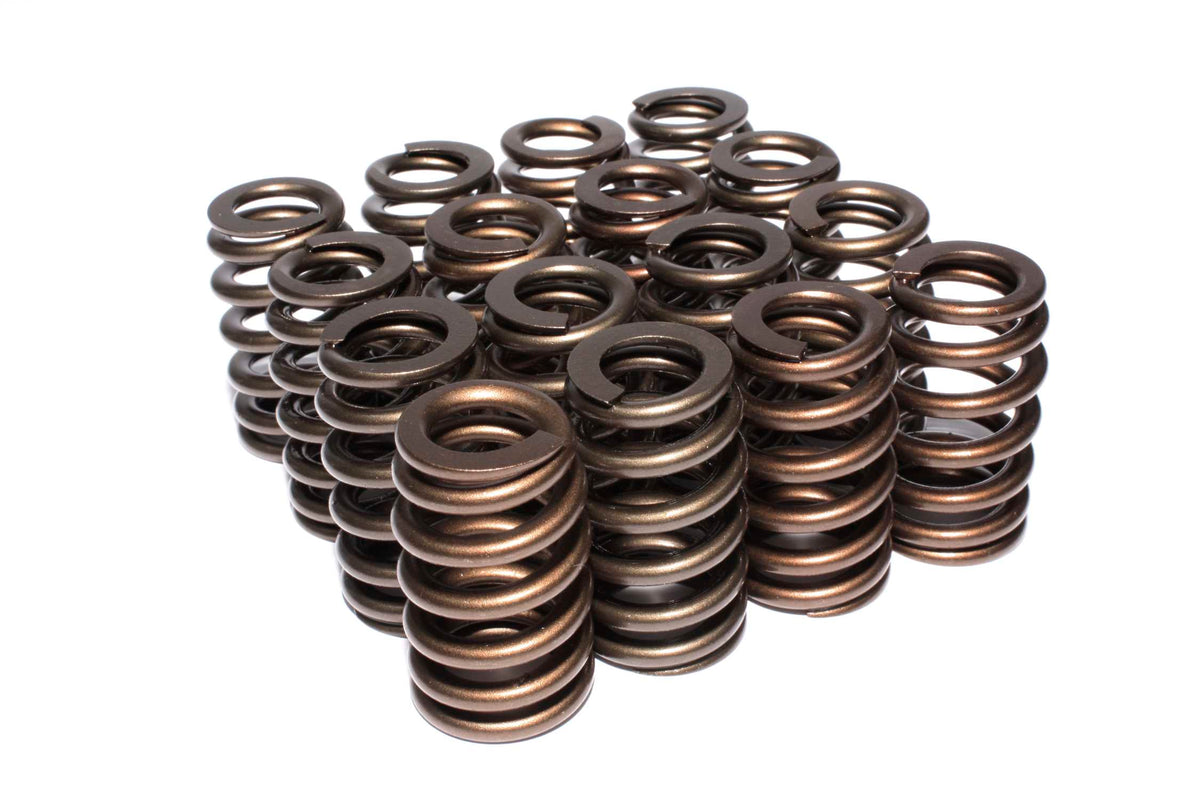

COMP Cams 26981-16 Performance Street 1.240" OD Beehive Spring, 1.700" Installed Height, 16 Springs

Beehive Valve Springs: Top 1.065" OD, .650" ID Bottom 1.240" OD, .825" ID

With a .525" maximum lift, these Beehive Valve Springs were designed for hydraulic or Solid flat tappet as well as hydraulic Roller cams. They work in most Small Block Chevy heads with no machining. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.

Part #	OD	ID	Seat Load	Open Load	Coil Bind	Rate (Lbs./In.)	Titanium Retainer	Steel Retainer	Cup Seat	Shims
26981	Top Bottom	1.0651.240	.650.825	110 @ 1.700	292 @ 1.175	1.115	347	788	1787, 787, 795	4693	4753

Specifications

Outer Top Spring Inside Diameter	0.65 IN
Outer Bottom Spring Inside Diameter	0.825 IN
Number of Springs	1
Outer Top Spring Outside Diameter	1.065 IN
Coil Bind Height	1.115 IN
Outer Bottom Spring Outside Diameter	1.24 IN
Seat Height	1.7 IN
Seat Pressure	110 PSI
Spring Rate	347 PPI
Compatible .570" Guide Diameter Spring Seats	4693-16
Compatible Shims	4753
Compatible Retainer	795-16
Damper	No
Valve Spring Series	Performance Street

---

⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Warranty: 12 Months
