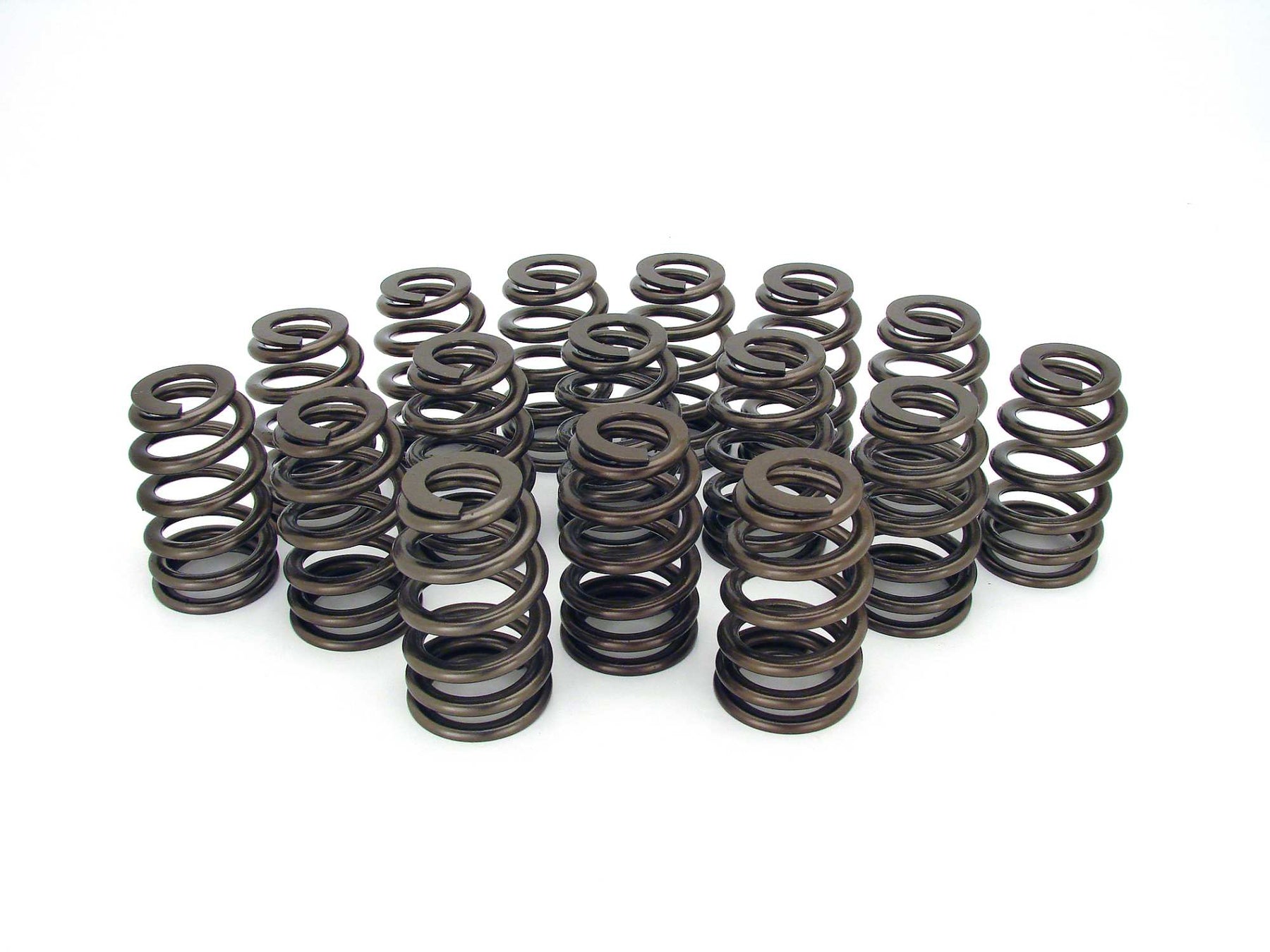

COMP Cams 26995-16 Performance Street 1.415" OD Beehive Spring, 1.700" Installed Height, 16 Springs
Product Availability Request
Fill the form and our team will contact you.
Beehive Valve Spring: Top 1.065" OD, .650" ID Bottom 1.415" OD, 1.000" ID, 305 @ 1.100 - Set of 16
With a .580" maximum lift, these Beehive Valve Springs were designed for hydraulic or Solid flat tappet as well as hydraulic Roller cams. They are great for Pontiac, Oldsmobile and Small Block Chrysler or other Applications that require shorter Installation height. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.| Part # | OD | ID | Seat Load | Open Load | Coil Bind | Rate (Lbs./In.) | Titanium Retainer | Steel Retainer | Cup Seat | Shims | |
| 26995 | Top Bottom | 1.0651.415 | .6501.000 | 137 @ 1.700 | 305 @ 1.100 | 1.060 | 280 | 788 | 1787, 787, 795 | 4696 | 4755 |
Specifications
| Outer Bottom Spring Inside Diameter | 1 IN |
| Outer Bottom Spring Outside Diameter | 1.415 IN |
| Outer Top Spring Inside Diameter | 0.65 IN |
| Outer Top Spring Outside Diameter | 1.065 IN |
| Seat Height | 1.7 IN |
| Seat Pressure | 137 PS |
| Spring Rate | 280 |
| Valve Spring Series | Performance Street |
| Coil Bind Height | 1.06 IN |
| Compatible .570" Guide Diameter Spring Seats | 4694-16 |
| Compatible Retainer | 795-16 |
| Compatible Shims | 4755 |
| Damper | No |
| Number of Springs | 1 |
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
