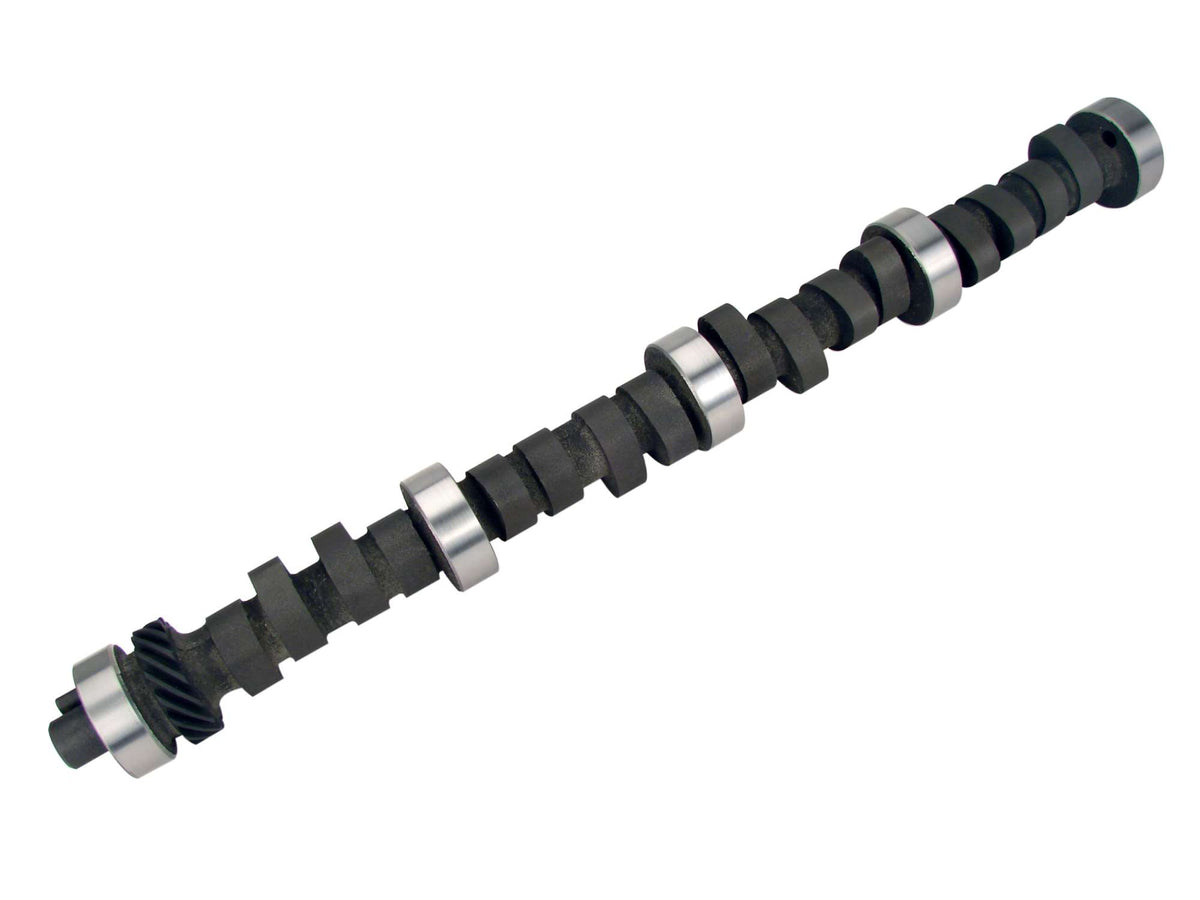

COMP Cams 34-336-4 Magnum/Marine 244/244 Hydraulic Flat Cam for Ford 429,460

A hydraulic flat tappet camshaft designed for street and strip use in Ford big-block engines, COMP Cams' Marine series cam (part number 34-336-4) delivers 0.56 inch valve lift and 244 DD duration at .050 inch lift on Ford 429 and 460 cubic inch 8-cylinder engines. Cast iron construction with a 1-bolt gear attachment supports operating ranges from 2,500 to 6,500 RPM.

• Camshaft Series: Marine
• Cam Type: Hydraulic Flat Tappet
• Grind Number: 292H
• Camshaft Material: Cast Iron
• Intake Valve Lift: 0.56 IN
• Exhaust Valve Lift: 0.56 IN
• Advertised Intake Duration: 292 deg
• Advertised Exhaust Duration: 292 deg
• Intake Duration at .050 Inch Lift: 244 deg
• Exhaust Duration at .050 inch Lift: 244 deg
• Lobe Separation: 110 deg
• Engine Family: Ford 429, 460 c.i. 8 Cylinder (1968-1995)
• Basic Operating RPM Range: 2,500-6,500 RPM
• Usage: Street/Strip
• Lifter Type: Hydraulic Flat Tappet
• Camshaft Gear Attachment: 1-Bolt
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• SK-Kit Upgrade: SK34-336-4
• Cam and Lifter Kit Upgrade: CL34-336-4
• K-Kit Upgrade: K34-336-4
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
