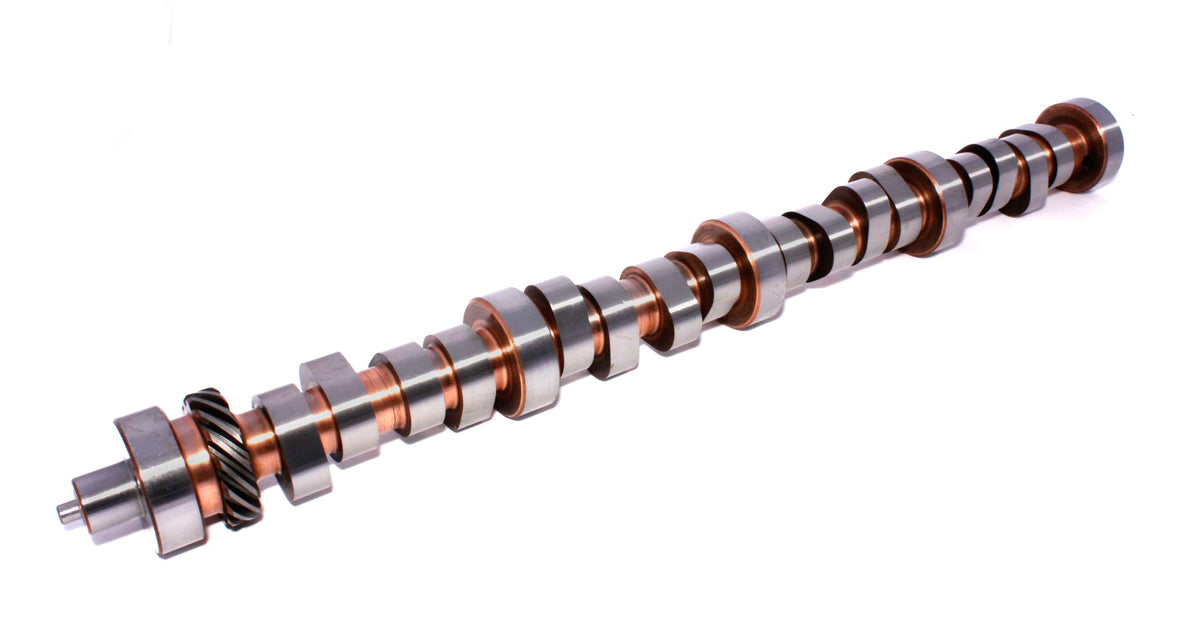

COMP Cams 34-773-9 Xtreme Energy 254/260 Solid Roller Cam for Ford 429,460

Ford big-block engines from 429 to 460 cubic inches with solid roller lifter systems require a precisely profiled camshaft for proper valve timing and lift. The COMP Cams Xtreme Energy XR292R-10 camshaft (part 34-773-9) is constructed from billet steel and delivers 0.671-inch intake and 0.678-inch exhaust valve lift. Intake and exhaust duration measure 254 and 260 degrees respectively at.050 inch lift. The camshaft operates across a 3,200-7,200 RPM range with a 1-bolt gear attachment and 110-degree lobe separation.

• Camshaft Series: Xtreme Energy
• Grind Number: XR292R-10
• Cam Type: Solid Roller
• Lifter Type: Solid Roller
• Engine Family: Ford 429, 460 c.i. 8 Cylinder (1968-1995)
• Camshaft Material: Billet Steel
• Camshaft Gear Attachment: 1-Bolt
• Lobe Separation: 110 deg
• Basic Operating RPM Range: 3200-7,200 RPM
• Advertised Intake Duration: 292 deg
• Advertised Exhaust Duration: 298 deg
• Intake Duration at.050 Inch Lift: 254 deg
• Exhaust Duration at.050 inch Lift: 260 deg
• Intake Valve Lift: 0.671 IN
• Exhaust Valve Lift: 0.678 IN
• Usage: Street/Performance
• Valve Springs Required: Yes
• Lifters Included: No
• Assembly Lubricant Included: No
• K-Kit Upgrade: K34-773-9
• Cam and Lifter Kit Upgrade: CL34-773-9
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
