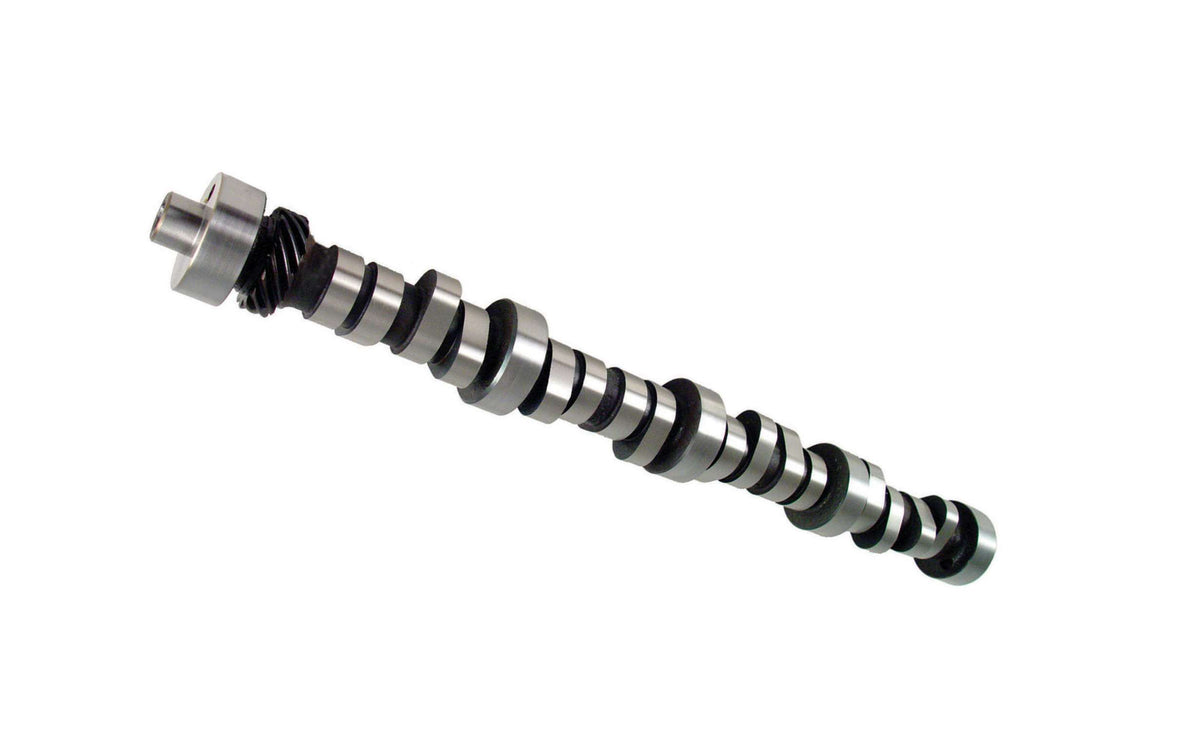

COMP Cams 35-775-8 XFI Computer Controlled 236/248 Hydraulic Roller Cam for Ford 351W

The COMP Cams XFI model 35-775-8 is a computer-controlled hydraulic roller camshaft designed for Ford 5.0L engines from 1985 to 2002. This performance-oriented grind delivers strong mid-range characteristics with a 236-degree intake duration and 248-degree exhaust duration, measured at.050 inch valve lift. Featuring 0.579-inch valve lift at both intake and exhaust, the camshaft operates from 2,600 to 6,300 RPM. The 114-degree lobe separation angle, combined with austempered ductile iron construction and 1-bolt gear attachment, provides reliable valve control for street and performance applications.

• Engine Family: Ford 5.0L (1985-2002)
• Camshaft Series: XFI
• Cam Type: Hydraulic Roller
• Lifter Type: Hydraulic Roller
• Usage: Street/Performance
• Grind Number: XFI236HR-14
• Basic Operating RPM Range: 2,600-6,300 RPM
• Intake Duration at.050 Inch Lift: 236 deg
• Exhaust Duration at.050 inch Lift: 248 deg
• Advertised Intake Duration: 286 deg
• Advertised Exhaust Duration: 300 deg
• Lobe Separation: 114 deg
• Intake Valve Lift: 0.579 IN
• Exhaust Valve Lift: 0.579 IN
• Camshaft Material: Austempered Ductile Iron
• Camshaft Gear Attachment: 1-Bolt
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
