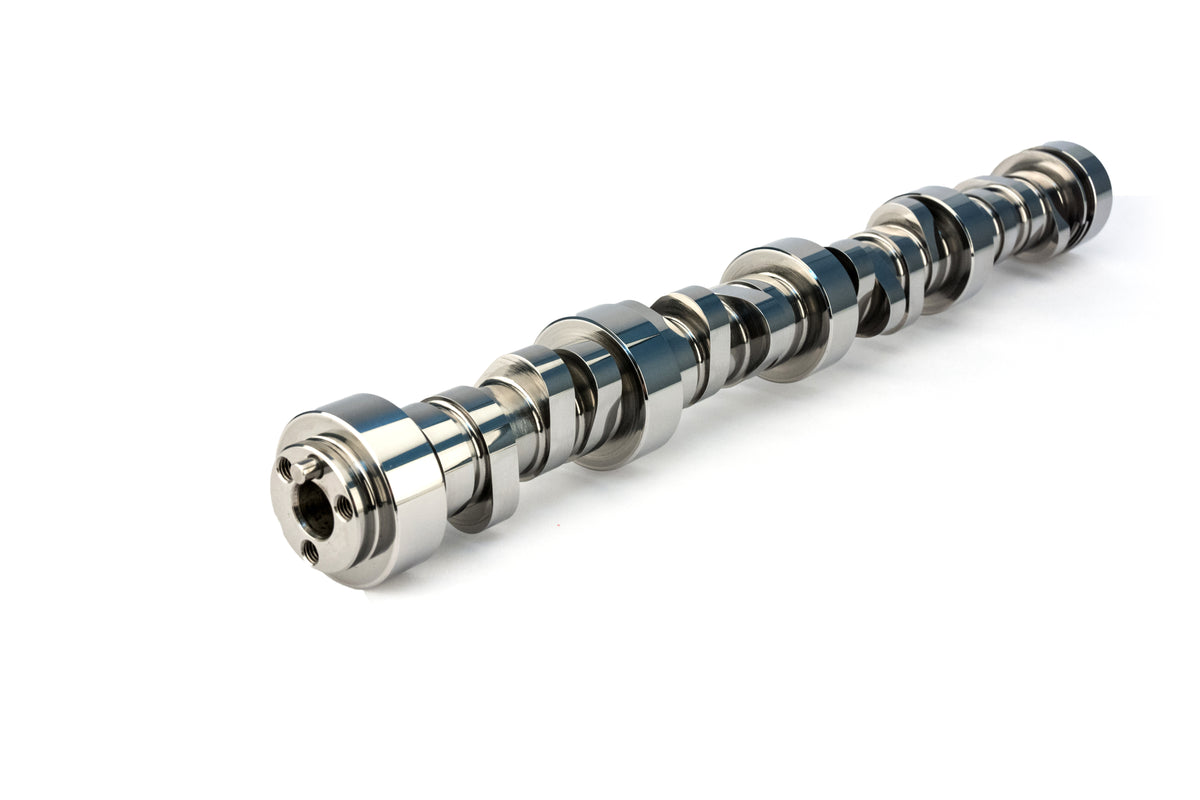

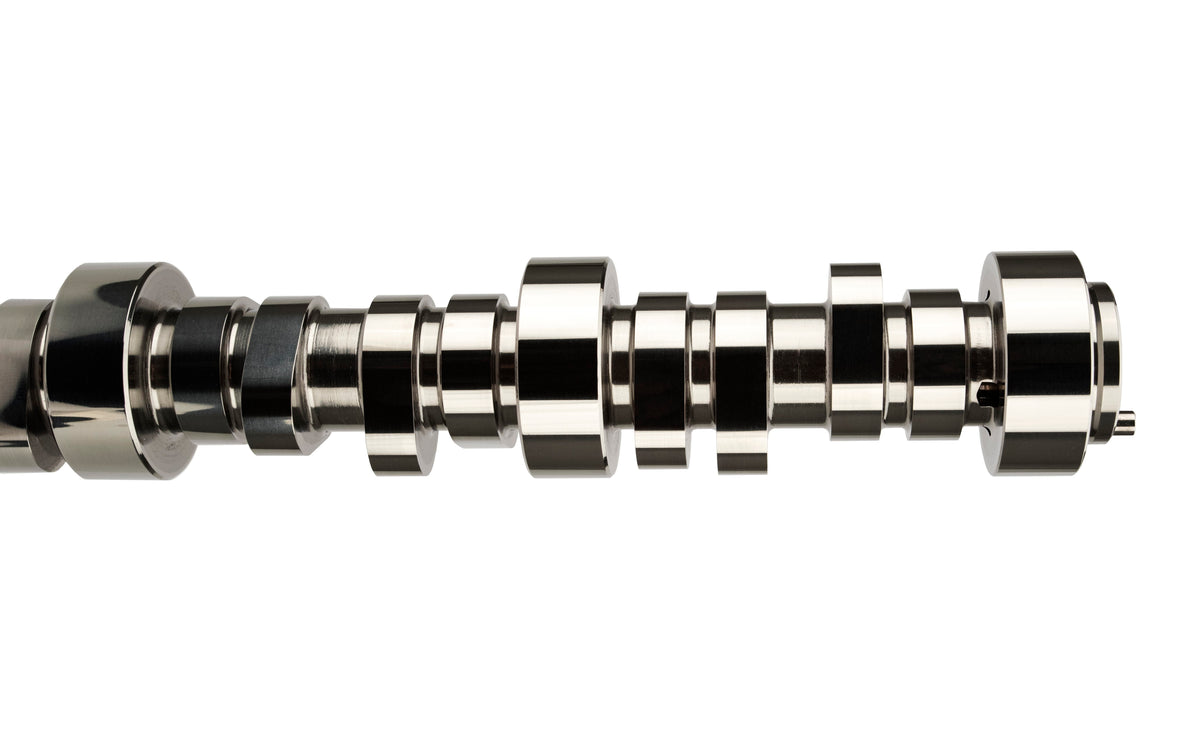

COMP Cams 54-457-11 LSR Cathedral Port 223/231 Hydraulic Roller Cam for GM LS GEN III/IV
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.
Steady power throughout broad range. Needs aftermarket airflow improvements on inlet and exhaust.
Hydraulic Roller: Steady power throughout broad range. Needs aftermarket airflow improvements on inlet and exhaust.
Specifications
| Camshaft Series | LSR Cathedral Port Small Displacement/Max Torque |
| Intake Valve Lift | 0.61 IN |
| Exhaust Valve Lift | 0.617 IN |
| Basic Operating RPM Range | 1,700-6,800 RPM |
| Lobe Separation | 112 deg |
| Intake Duration at .050 Inch Lift | 223 deg |
| Exhaust Duration at .050 inch Lift | 231 deg |
| Advertised Intake Duration | 273 deg |
| Grind Number | 273Lr HR12 |
| Advertised Exhaust Duration | 281 deg |
| Camshaft Gear Attachment | 3 |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Engine Family | GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015) |
| Lifter Type | Hydraulic Roller |
| Cam Type | Hydraulic Roller |
| Assembly Lubricant Included | No |
| Lifters Included | No |
| Valve Springs Required | Yes |
⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
