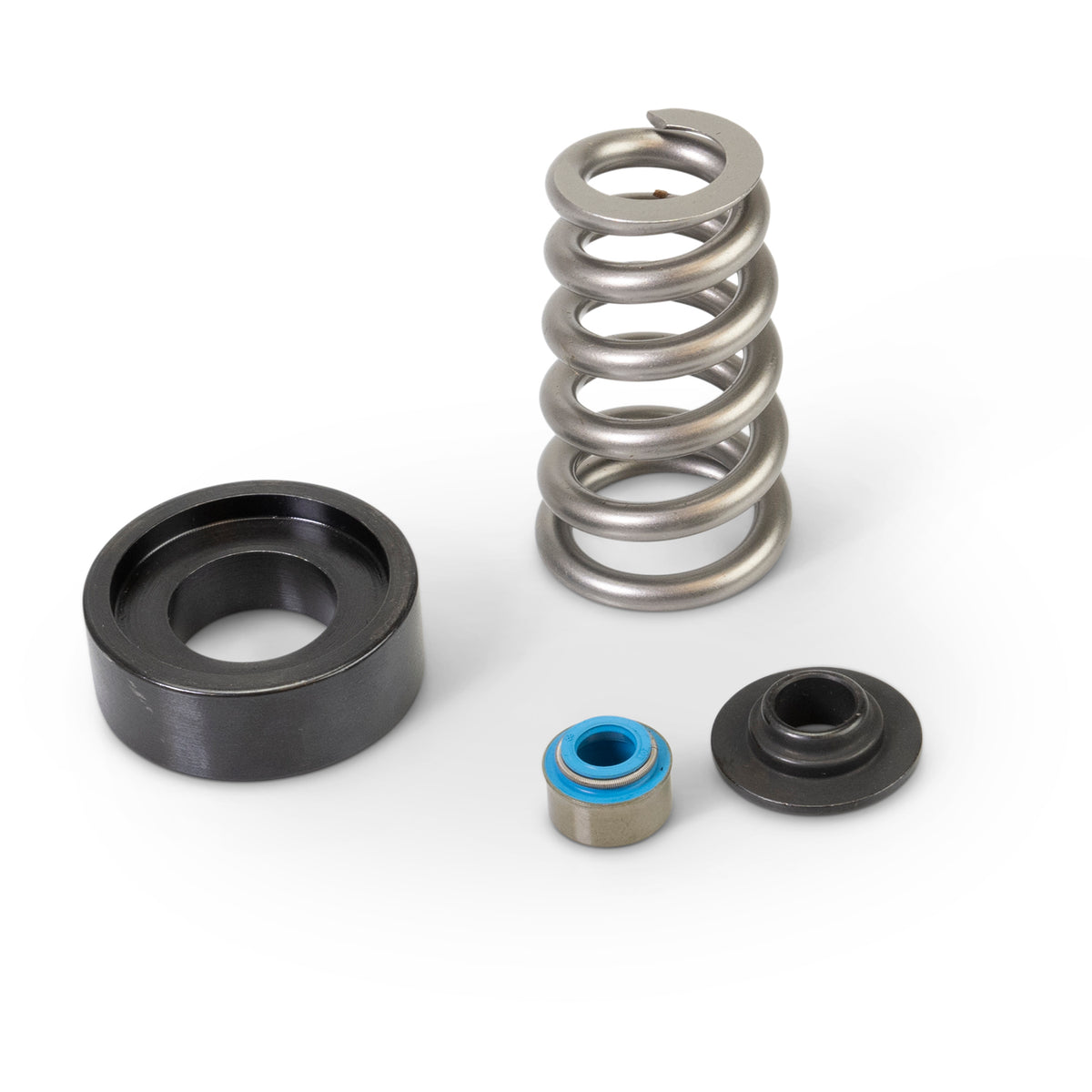

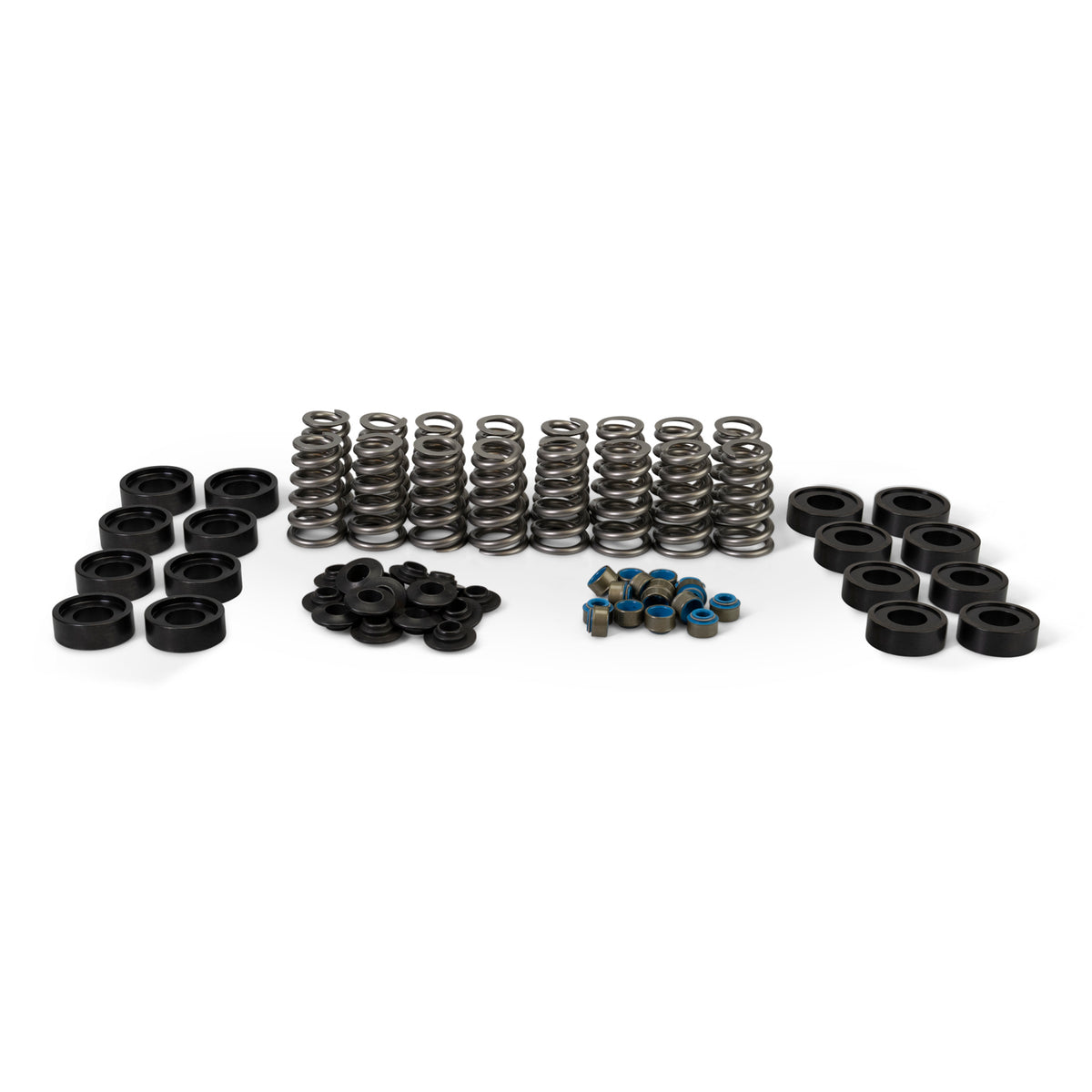

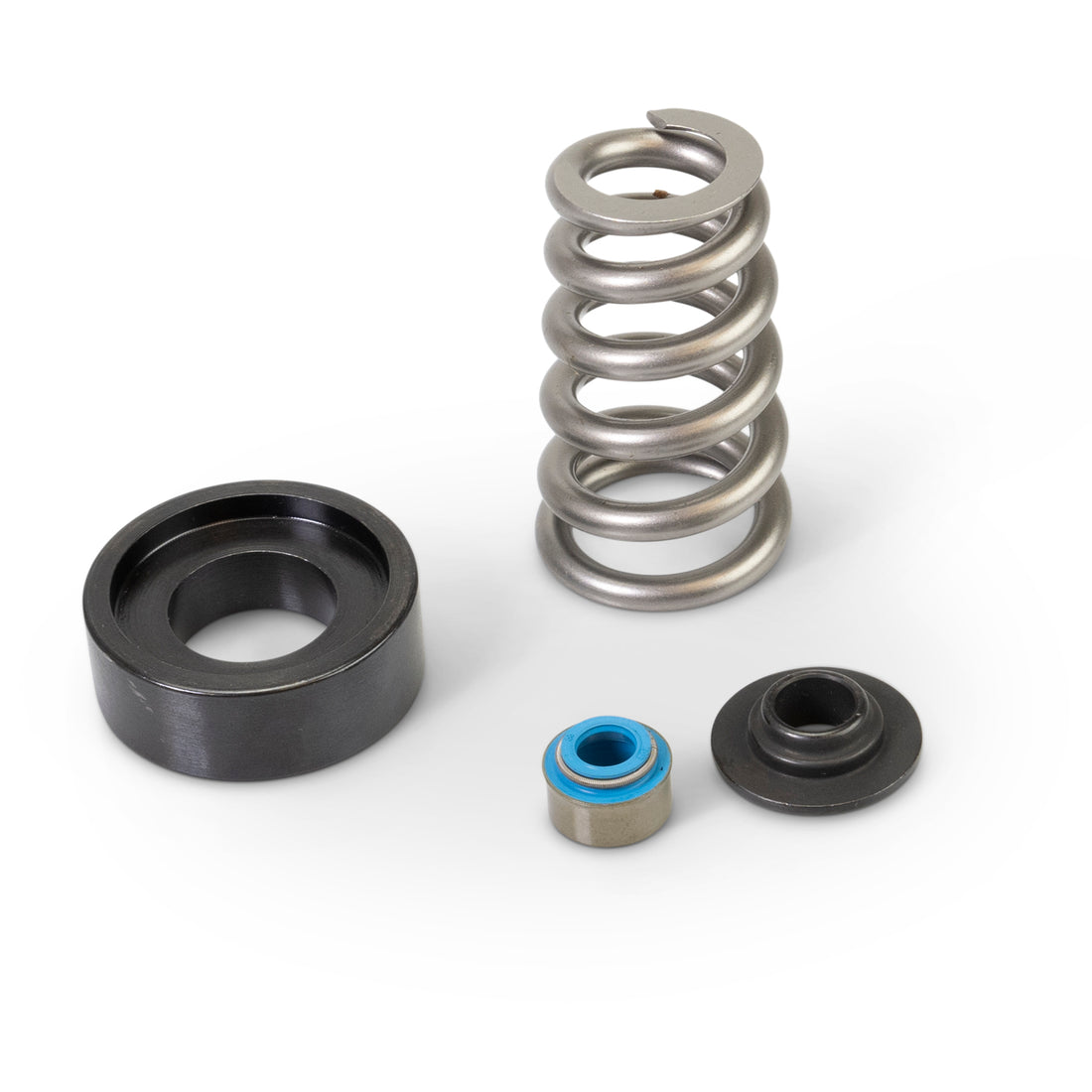

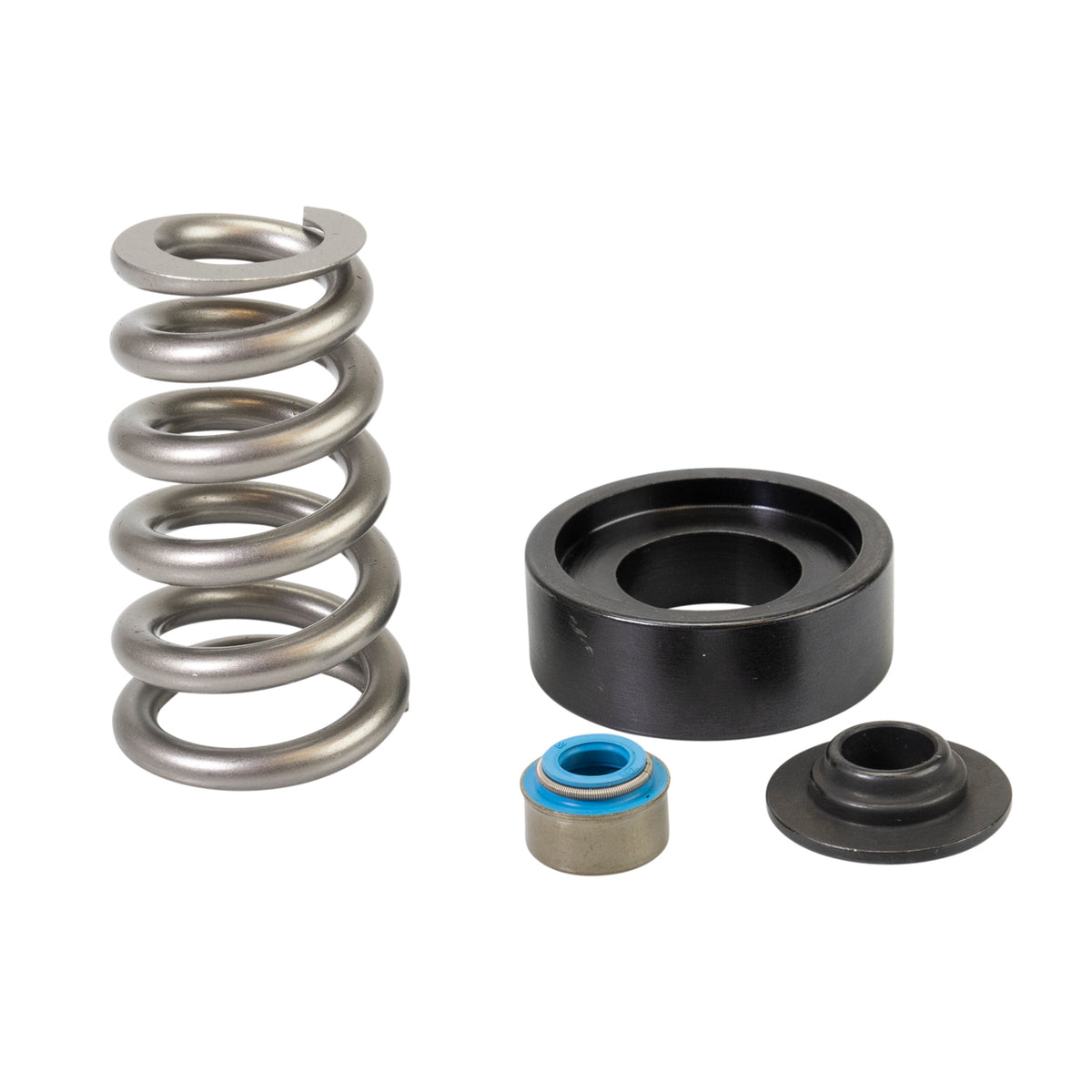

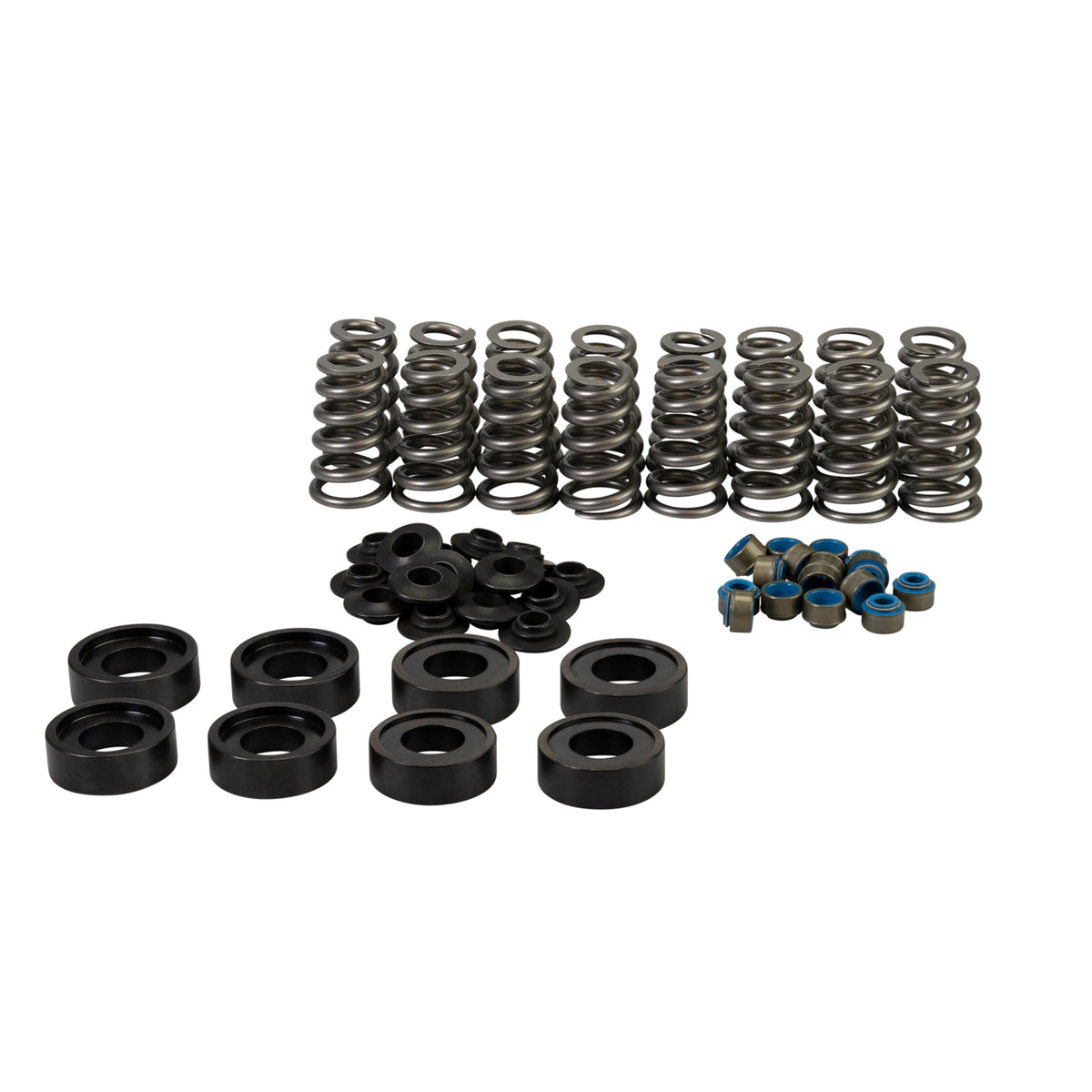

COMP Cams 7230GCS-KIT Conical Valve Spring Kit for Ford 7.3L Godzilla Engine

Name: COMP Cams 7230GCS-KIT Conical Valve Spring Kit for Ford 7.3L Godzilla Engine
Brand: COMP Cams
SKU: 7230GCS-KIT
Price: 604.95 USD
Availability: InStock

$604.95 USD

In Stock - Fast Shipping

Free shipping over $80 To the USA

Warranty 12 Months

COMP Cams Conical Valve Spring Kits for Ford 7.3 Godzilla engines use round wire designed to increase valve train RPM, reduce resonance, and decrease spring oscillations, while providing .675" of lift. They use chromemoly steel retainers.

This new Valve Spring Kit for Ford’s 7.3L Godzilla engine utilizes COMP Cams® Conical Valve Springs to provide .675” of valve lift. The conical springs use round wire featuring a diameter and progressive pitch-driven natural frequency. This design increases the valve train RPM while reducing resonance concerns and decreasing dynamic spring oscillations. The result is longer spring life and the ability to run a more aggressive camshaft. It utilizes chromemoly steel retainers and stock valve seals.

Features

.675" Valve Lift
Conical Valve Springs

Specifications

Valve Spring Style	Conical
Number of Springs Per Valve	1
Installed Height	1.900 IN
Load at Installed Height	145 LB
Open Height	1.225 IN
Load at Open Height	496 LB
Recommended Max Lift	.675 IN
Top Outside Diameter of Outer Spring	1.060 IN
Bottom Outside Diameter of Outer Spring	1.332 IN
Top Inside Diameter of Outer Spring	.660 IN
Bottom Inside Diameter of Outer Spring	.932 IN
Spring Rate	520 PPI
Maximum Coil Bind	1.185 IN
Valve Spring Finish	Superfinish
Retainer Material	Chromoly Steel
Lock Style	7 DD
Valve Stem Diameter	.315 IN
Spring Seat OD	1.650 IN
Machine Work Required	No
Quantity	16

⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Warranty: 12 Months

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
