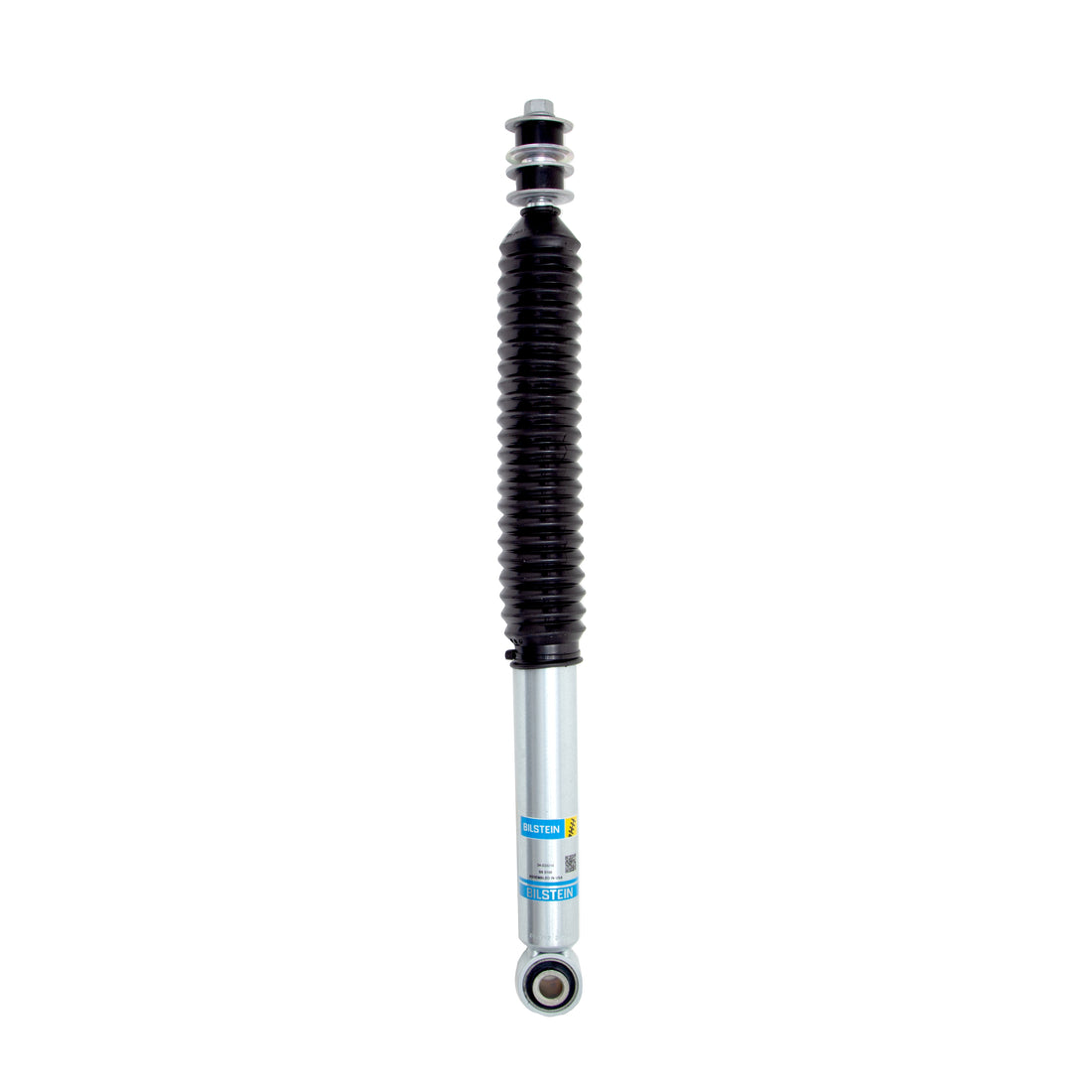

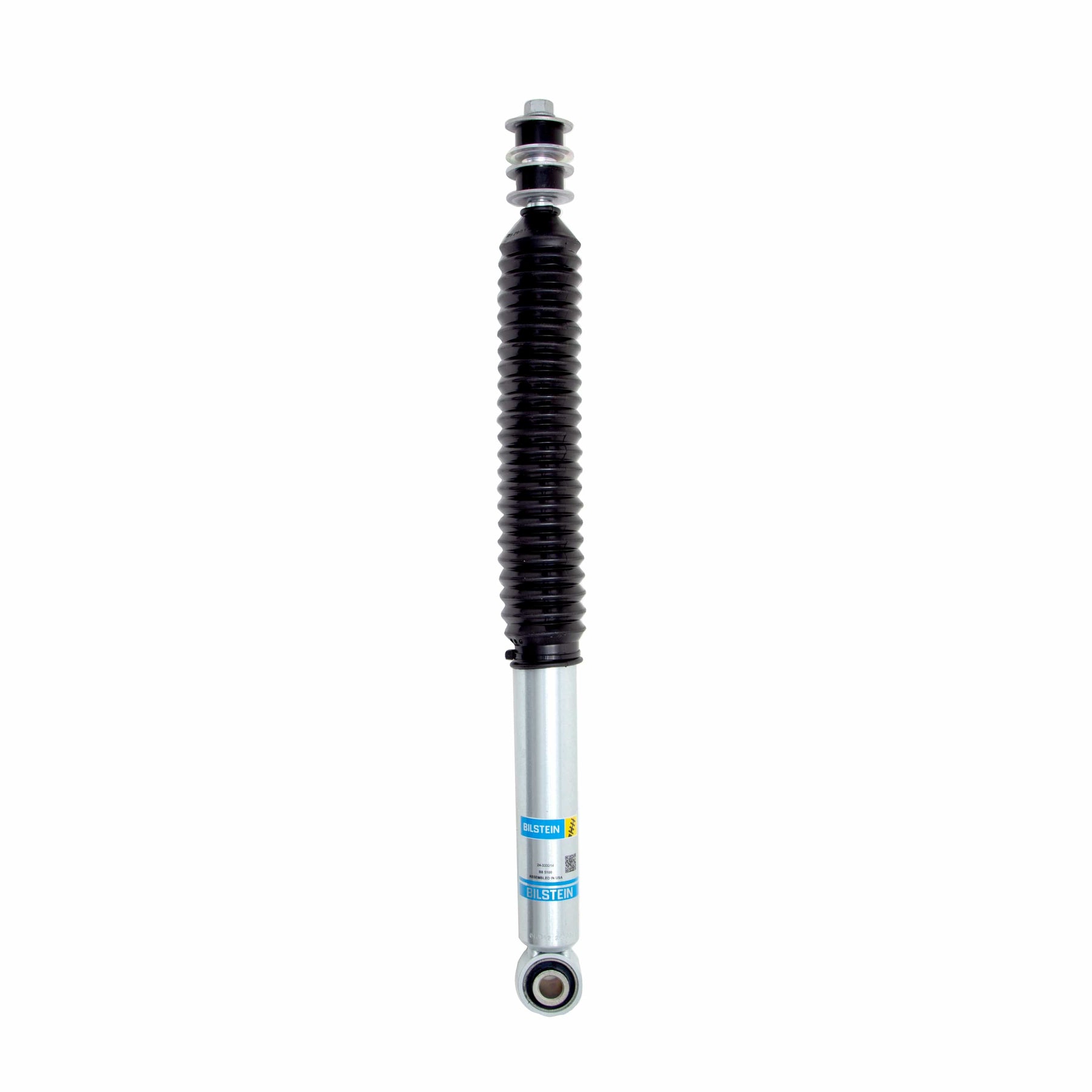

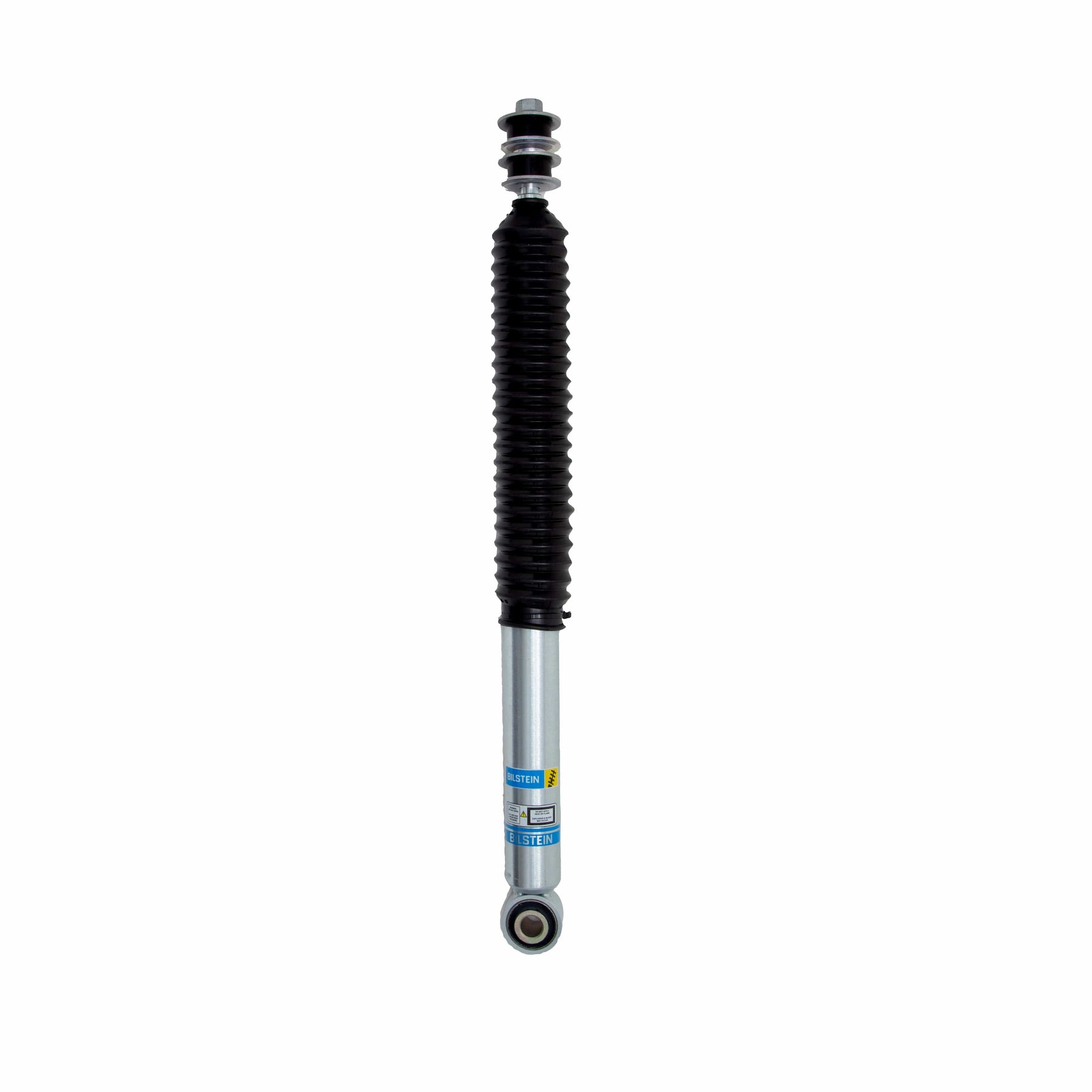

Bilstein 24-333214 Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Collapsed Length (IN) | 15.78 |
| Extended Length (IN) | 25.44 |
| Collapsed Length (MM) | 400.8 |
| Extended Length (MM) | 646.2 |
| Series | B8 5100 |
| Boot Included | Black Bellows |
| Lower Mount Type | Eye 19.1mm |
| Internal Design | Monotube |
| Reservoir | No |
| Spring Seat Included | No |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-coilover) |
| Prop 65 (Y/N) | Y |
| Finish | Zinc Plated |
| Upper Mount Type | Stem |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 245.4 |
| Stroke/Travel Length (IN) | 9.66 |
Short Description: Shock
Invoice Description: Toyota Tacoma '24+; R; B8 5100; 0-1.5"
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Warranty: Limited Lifetime Warranty
